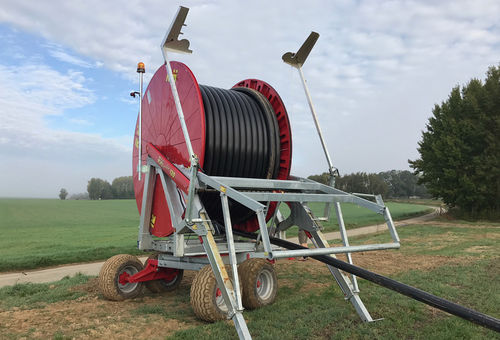

Irrigation hose reel 990 gx

turbine-drivetowed

•Flow-distributor turbine with built-in by-pass •4-speed gearbox with shafts completely in oil bath •PTO for fast hose rewinding •Braking system to unwind the hose with fully automatic operation •Automatic speed compensator according to the hose winding diameter •Anti-slackening hose safety device •Safety device to stop the machine if the hose winds unevenly •Electronic hose rewinding speed measuring device •Digital clock •Worm screw hose turning system with micrometric regulation and double guide •Reel support on ball bearings and lipped retention ring with stainless steel bushing •Frame swivelling on a ball bearing centre plate through 360° •Self-balancing hydraulically controlled rear anchoring brackets, and hydraulic lift of trolley •Bar base hydraulically controlled through spool valve •Flexible rubber hose to supply the machine, complete with connections •Adjustable trolley track and wheel height SIME sprinkler with slow return and set of nozzles •Pressure-gauge in glycerine bath on the machine •Pressure-gauge in glycerine bath on the sprinkler (SIME) •Ball joint on sprinkler trolley •Sprinkler trolley ballasts •Adjustable bar eye •Hot-dip galvanized structure (painted reel) •Hydraulic spool valve for services •Water inlet on both sides •Hydraulic rotation of turret with additional of an element on the spool valve •Double axle on rocker arm
