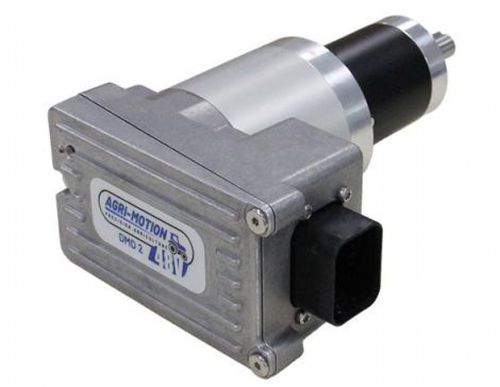

Brushless electric motor DMD-2 48V

The DMD-2 48V motor is a brushless motor with an electronically controlled planetary gearbox. This motor can be used to replace mechanical or hydraulic transmissions, in agricultural equipment, such as in the variable rate applications. Features: • Designed for 48V agricultural equipment; • 4,5 Nm, 80 rpm @ output shaft; • Custom versions upon request; • Integrated brushless motor drive with CANOpen communication (speed and position control); • 2 digital inputs (e.g. seed sensor or hopper level sensor). Main advantages compared to 12V: • For the same motor power, the 48V system uses 1/4 of the current, reducing problems related to the voltage drop; • For the same current consumption, several motors can be connected to the 48V system, increasing the total power installed on the machine.
