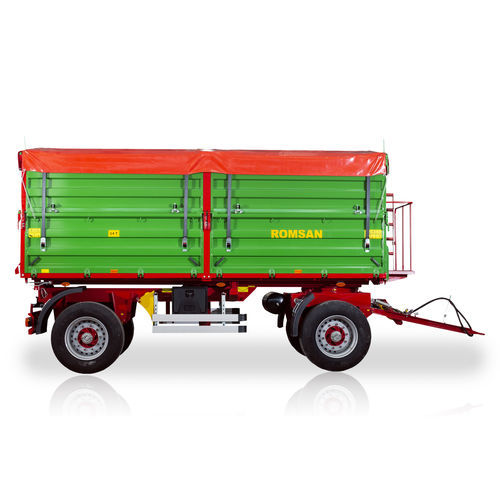

Tipping trailer R140CSGA4Pmounted2-axleagricultural
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Construction
- tipping
- Type
- mounted
- Number of axles
- 2-axle
- Application
- agricultural
- Payload
- 14 tons
- Brake system
- with pneumatic braking
- Empty weight
4,300 kg
(9,479.9 lb)- Load volume
18 m³
(635.664 ft³)- Loading case lenght
4,950 mm
(194.9 in)- Loading case width
2,250 mm
(88.6 in)
Description
Loading Space:11,2 m²
Dimensions; Lenght/Widht/Height:7000/2400/2900 mm
Sidewall Height:800+800 mm
Floor/Wall Thickness (mm):5 mm/2,5 mm
Wheel Track:1800 mm
Suspension:Parabolic Spring
Tyres:385/65-22,5
Maximum Speed:40 km/h
Tipping System:3 Side
Telescopic Cylinder (Piston Stage/Oil Required/Working Pressure):4 Stage / 26 lt / 160 bar
Brake Type:Hydraulic / Pneumatic
Tipping Angle (Backwards/Sides):42° / 32°
