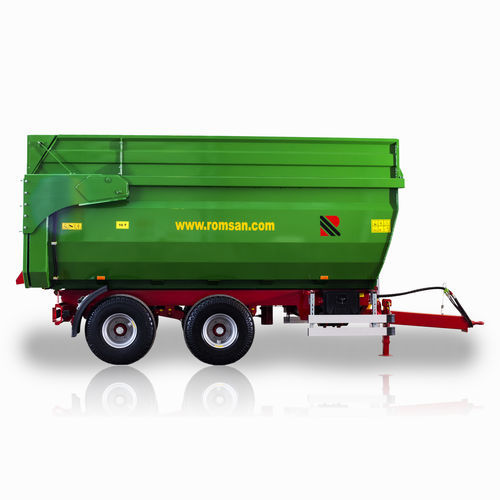

Tipping trailer R100TAHKP4mountedtandem axleagricultural
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Construction
- tipping
- Type
- mounted
- Number of axles
- tandem axle
- Application
- agricultural
- Payload
- 10 ton
- Brake system
- with hydraulic braking, with pneumatic braking
- Empty weight
3,500 kg
(7,716.2 lb)- Load volume
11.7 m³, 16.4 m³
(413.182 ft³, 579.161 ft³)- Loading case lenght
4,500 mm
(177.2 in)- Loading case width
Max.: 2,150 mm
(84.6 in)Min.: 2,100 mm
(82.7 in)
Description
Loading Space - -
Dimensions; Lenght/Widht/Height:6350/2450/2750 mm
Sidewall Height:1250 - 1750 mm*
Floor/Wall Thickness (mm):4 mm
Wheel Track:1800 mm
Suspension:Parabolic Spring
Tyres:400/60-15,5
Maximum Speed:40 km/h
Tipping System:back side
Telescopic Cylinder (Piston Stage/Oil Required/Working Pressure):4 Stage/15,5 lt/ 160 bar
Tipping Angle (Backwards/Sides):50°
