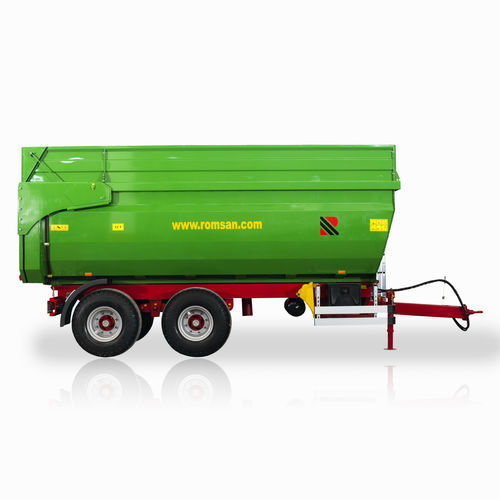

Tipping trailer R120TAHKP4mountedtandem axleagricultural
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Construction
- tipping
- Type
- mounted
- Number of axles
- tandem axle
- Application
- agricultural
- Payload
- 12 ton
- Brake system
- with pneumatic braking
- Empty weight
4,000 kg
(8,818.5 lb)- Load volume
13 m³, 18 m³
(459.091 ft³, 635.664 ft³)- Loading case lenght
5,000 mm
(196.9 in)- Loading case width
Max.: 2,150 mm
(84.6 in)Min.: 2,100 mm
(82.7 in)
Description
Loading Space:-
Dimensions; Lenght/Widht/Height:6850 / 2450 / 2850 mm
Sidewall Height:1250/1750 mm*
Floor/Wall Thickness (mm):4 mm
Wheel Track:1800 mm
Suspension:Parabolic Spring
Tyres:500 / 50-17
Maximum Speed:40 km/h
Tipping System:Back Side
Telescopic Cylinder (Piston Stage/Oil Required/Working Pressure):4 Stage/15,5 lt/160 bar
Tipping Angle (Backwards/Sides):50°
