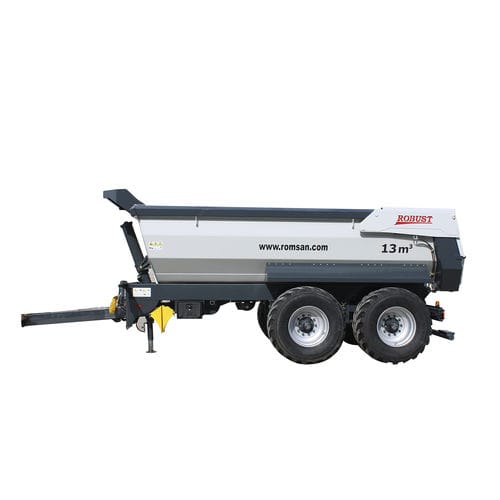

Tipping trailer R220TAHK-ROBUSTmountedtandem axleagricultural
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Construction
- tipping
- Type
- mounted
- Number of axles
- tandem axle
- Application
- agricultural
- Payload
- 15 ton
- Brake system
- with pneumatic braking
- Empty weight
6,200 kg
(13,668.7 lb)- Load volume
13 m³
(459.091 ft³)- Loading case lenght
5,500 mm
(216.5 in)- Loading case width
Max.: 2,070 mm
(81.5 in)Min.: 1,970 mm
(77.6 in)
Description
Loading Space - -
Dimensions; Lenght/Widht/Height:8600/2600/3000 mm
Sidewall Height:1300 mm
Floor/Wall Thickness (mm):6 mm
Wheel Track:2000 mm
Suspension:Parabolic Spring
Tyres:600/55-26,5
Maximum Speed:40 km/h
Tipping System:Back Side
Telescopic Cylinder (Piston Stage/Oil Required/Working Pressure):4 Stage /63 lt / 170 bar
Tipping Angle (Backwards/Sides):50°
