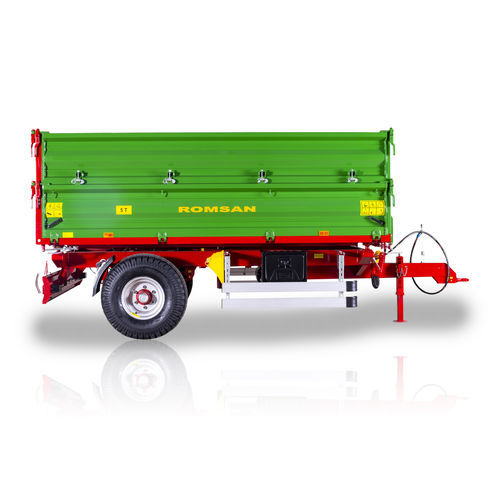

Dump trailer R50TSGAPmountedsingle-axleagricultural
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Construction
- dump
- Type
- mounted
- Number of axles
- single-axle
- Application
- agricultural
- Payload
- 5 ton, 3 ton
- Brake system
- with pneumatic braking
- Empty weight
1,800 kg
(3,968.3 lb)- Load volume
7 m³
(247.203 ft³)- Loading case lenght
3,440 mm
(135.4 in)- Loading case width
2,040 mm
(80.3 in)
Description
Loading Space:7 m²
Dimensions; Lenght/Widht/Height:4700/2200/2160 mm
Sidewall Height:500+500 mm
Floor/Wall Thickness (mm):4 mm/2 mm
Wheel Track:1700 mm
Suspension:Parabolic Spring
Tyres:12,5/80-15,3
Maximum Speed:40 km/h
Tipping System:3 Side
Telescopic Cylinder (Piston Stage/Oil Required/Working Pressure):3 Stage /8 lt/160 bar
Brake Type:Inertia / Hydraulic / Pneumatic
Tipping Angle (Backwards/Sides):42°/32°
