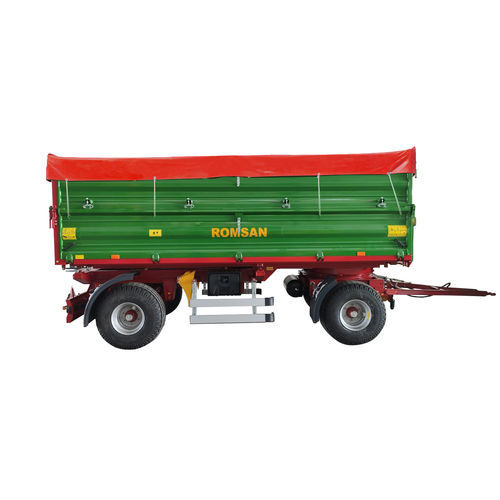

Tipping trailer R80CSGA4Pmounted2-axleagricultural
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Construction
- tipping
- Type
- mounted
- Number of axles
- 2-axle
- Application
- agricultural
- Payload
- 8 ton
- Brake system
- with pneumatic braking
- Empty weight
3,000 kg
(6,613.9 lb)- Load volume
10 m³
(353.147 ft³)- Loading case lenght
4,450 mm
(175.2 in)- Loading case width
2,250 mm
(88.6 in)
Description
Loading Space:10 m²
Dimensions; Lenght/Widht/Height:6500/2400/2250 mm
Sidewall Height - 500+500 mm
Floor/Wall Thickness (mm):5 mm/2,5mm
Wheel Track:1800 mm
Suspension:Parabolic Spring
Tyres:12,5/80-15,3
Maximum Speed:40 km/h
Tipping System:3 Side
Telescopic Cylinder (Piston Stage/Oil Required/Working Pressure):4 Stage / 10 lt / 160 bar
Brake Type:Hydraulic / Pneumatic
Tipping Angle (Backwards/Sides):42° / 32°
