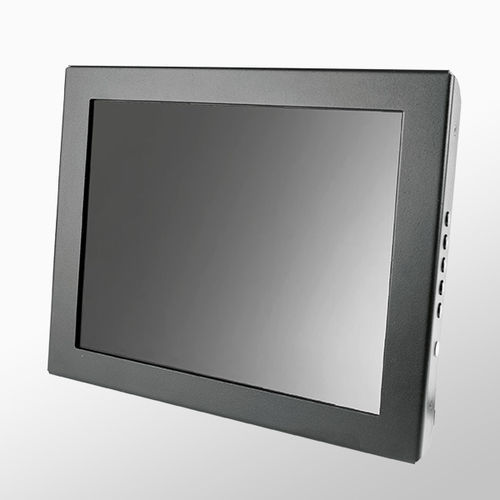

On-board monitor LCM 806

LCD

8″ monitor (12/24 V) in metal case for displaying the images from two video sources with external switching of the inputs. Especially suitable for use in buses and trains of public transport. It is usually mounted on the driver’s workstation or on the nose flap above the driver. The automotive grade (E1 certified) 8″ TFT-LCD monitor LCM 806 is a display for displaying the images from two video sources with external switching of the inputs and is mainly used in vehicles for displaying the images from two surveillance cameras. The monitor can be operated to set the image properties (such as brightness, contrast, etc.) and the operating modes (e.g. mirroring, automatic switch-on, etc.) via the control panel on the right side of the monitor. In both cases, the settings made in each case are displayed to the operator via graphical or text displays on the monitor. If desired, the keys can be protected against unintentional operation by deactivation. The simple and elegant design of the monitor fits seamlessly into the existing design and is therefore ideal for use in buses, trains and other means of public transport. Operation is also possible at temperatures from -20 to +80 °C. To ensure the quality of our products, the LCM 806 monitor also undergoes a comprehensive and stringent quality assurance process with very accurate routine testing at every key stage of production. Protection class: IP 54 Camera connections: 2 8″ color TFT LCD Resolution (WxH) 800 x 600 Videosignal PAL / NTSC contrast 500:1 Camera / video inputs 2x (via trigger signal) Operating temperature range -20°C ~ +80 °C Power supply 12/24 VDC Dimensions 204mm x 156mm x 24mm (without holder)
