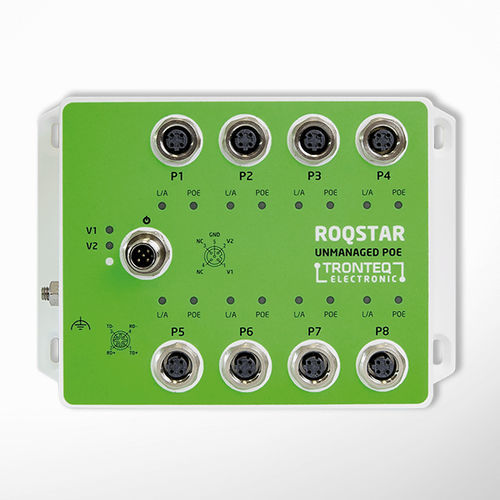

IP54 switch ZA-7-007-17

PoE switch with M12 connector for use in all types of vehicles. Easy to connect via plug & play function. Can be used as the basis of small networks to connect IP cameras or other IP-based components. The unmanaged PoE switch provides 8 Fast Ethernet ports with 30 watts PoE power per port. It has an integrated DC/DC converter and is powered with 24 VDC. With its M12 connectors and IP54 enclosure, the switch is ideal for use in video applications, passenger counting systems and other IP devices in buses, electric and autonomous public transportation vehicles. The switch is plug & play, easy to use and features a very good price/performance ratio. Connectors M12 d-coded socket 4-pin: 8 x 10/100Mbps M12 a-coded connector: 1 x power supply Physical Case: aluminum Installation: wall mounting Weight: 750g Environment Operating temperature (ambient): -40°C to +70°C Storage temperature: -40°C to +85°C Relative humidity: 10% to 90%, non-condensing LED indicators Power LEDs: V1, V2 Network LEDs: L/A ; PoE Power supply Power consumption: 5.0W at 24 VDC Operating voltage: 9.6 – 60VDV Power supply input: V1, V2, dual, reverse polarity protected Certificates E-mark EMC: ECE R10 E-mark fire protection: ECE R118 Markings: ITxPT labeled, IBIS-IP compliant
