Agricultural trailer Express 800

dumpsingle-axlevineyard

Overview

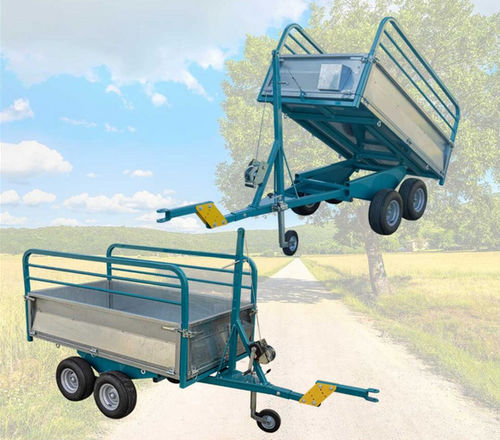

The Rosselli Express 800 is a compact dump trailer designed for gardening, landscaping and light agricultural use. Towable by quad/ATV, small tractors and ride-on mowers, it combines high volumetric capacity with easy manoeuvrability on rough and confined terrains.

Main functions

• Tilting crate with manual winch and steel cable for secure, controlled lifting and lowering of the platform.
• Additional removable side rails to increase volumetric capacity for bulky loads such as branches and foliage.
• 4-wheel axle with oscillating/twin wheels to improve stability, traction and load distribution on uneven ground.
• Manual winch with automatic brake mounted on the front drawbar for safe operation.
• Optional fork-type tow hook for articulated connection to tractors or ATVs, with integrated shear pin for rotation on rough terrain.
• Galvanized hooks for straps and bands to secure large or irregular loads.
• Height-adjustable jockey wheel for easy manual manoeuvring and stable parking when unhitched.
• Quick snap-hook closure system for fast and reliable side panel locking.
• Document/object holder for carrying paperwork and small tools safely during transport.

Mechanical tipping system — features

• Manual winch with automatic brake and high-strength steel cable using a vertical return column for ergonomic lifting.
• Smooth lever-guided descent for controlled lowering and elimination of sudden drops.
• Fully manual, maintenance‑free system: no PTO, hydraulics or electrical connections required, ensuring autonomy and reliability in field conditions.

Technical table
Model | Trailer body length - Internal (mm) | Trailer body width - Internal (mm) | Weight capacity on the floor (Kg) | Wheels (mm) | Dimension (L x W x H) (mm) | Weight (Kg)
Express 800 | 1570 | 1000 | 800 | 410x160 | 2900 x 1000 x 1220 | 140

Additional notes
The Express 800 is particularly suited to fields, vineyards and wooded areas thanks to its compact footprint, mechanical tipping system and twin-wheel configuration which improve traction and mobility in soft or uneven soils.

caractéristiques / spécifications techniques

• Model: Express 800
• Brand: Rosselli
• Trailer body internal length: 1570 mm
• Trailer body internal width: 1000 mm
• Floor load capacity: 800 Kg
• Wheel size / type: 410 x 160 (twin-wheel configuration, oscillating axle)
• Overall dimensions (L x W x H): 2900 x 1000 x 1220 mm
• Net weight: 140 Kg
• Tilting mechanism: manual steel cable winch with automatic brake
• Towing compatibility: quad/ATV, small tractors, ride-on mowers
• Options/features: additional side rails, fork tow hook, strap/hooks, jockey wheel, snap-hook side closures, document holder
