Gravity seed drill SD 700 Smart

grass

Product overview

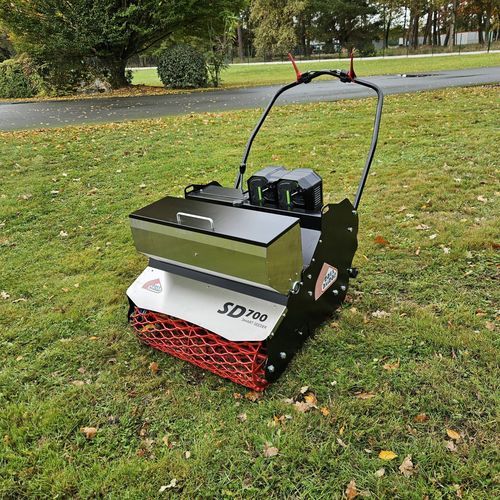

The ROTADAIRON SD 700 Smart Seeder is a self-propelled turf seeding machine for precision seeding, seed burial and surface consolidation. It is an updated version of the SD 700 that retains ROTADAIRON turf-seeder components in a lighter frame for improved manoeuvrability. Suitable for common turf species such as Kentucky bluegrass, red fescue and perennial ryegrass. The front metal-mesh roller lifts and aerates the surface, the stainless-steel gravity seed drill deposits seed, the seed-burying rotor covers the seed and the smooth rear roller compacts the surface to promote uniform germination and minimise footprints. The machine is driven by the rear packer roller and is offered in petrol (Honda 4.5 HP) or electric (SD 700 E with EGO 2700 W) versions.

Key benefits

• Precision seed placement for consistent germination
• Reduced surface marking thanks to smooth rear compaction
• Improved manoeuvrability due to reduced weight and compact dimensions
• Compatible with multiple grass species and quick calibration
• Choice of petrol or electric power for site-specific requirements

Equipment

• Oil bath air filter
• Parking brake lever
• Gearshift (4 forward speeds, 1 reverse)
• Hour meter and tachometer
• Seed level indicator
• Seed flow adjustment dial (0–6)
• Calibration bucket
• Seed burying rotor

Suggestions

• Recommended use on ground previously prepared with a ROTADAIRON stone burier

Service and warranty

• Delivered with user manual
• Delivered with one-year warranty certificate
• One-year warranty extension available as an option

Technical specifications

• Seeding width: 700 mm (27 1/2 in)
• Total width (working): 840 mm (33 3/32 in)
• Machine dimensions (L x W x H): 1200 x 840 x 1310 mm (length: 1200 mm / height: 1310 mm)
• Transport dimensions: 860 x 1200 x 1310 mm (33 7/8 x 47 1/4 x 51 5/8 in)
• Weight (entry 1): 234 kg
• Total weight (entry 2): 162 kg (357 lb)
• Front roller type: Metal mesh roller
• Front roller diameter: 330 mm (13 in)
• Rear roller type: Smooth roller
• Rear roller diameter: 330 mm (13 in)
• Engine type: Honda 4.5 HP petrol engine or EGO 2700 W electric motor
• Engine air cleaner: Oil bath air cleaner
• Transmission: 4 forward speeds, 1 reverse
• Type of seed drill: Stainless steel gravity seed drill
• Seed rate adjustment: Adjustment dial 0 to 6
• Seed rate calibration: Calibration bucket
• Seed drill capacity: 55 litres (14.5 US gal)
