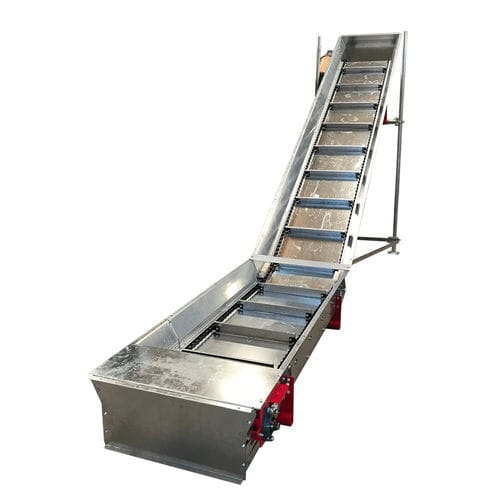

Feed conveyor

chaininclined

The ideal chain conveyor to efficiently transport your TMR from your mixer. .Simple design for a minimum maintenance .Entirely made of galvanized steel .2-years parts and labor warranty available as an option .Multiple dimensions available to fit all needs .Chains mounted on UHMW brackets – reduces noise and lengthens service life .Several options available: .cover .drive unit cover .loading and unloading hopper .fixed or adjustable joint TECHNICAL SPECS SECTION:Length of 1 (0.30 m), 2 (0.60 m), 4 (1.2 m) and 8 (2.43 m) feet MOTOR:Motor 2HP or 3HP (240 volts 60 Hz or 600 volt 60 Hz) CURVED SECTION:Upward or downward adjustable joint - from 0 to 35 degrees Fixed joint - upwards - 35 degrees DRIVE MECHANISM:Gearbox 10:1 or 15:1 (2HP, 3HP ou 5HP) DRIVE UNIT DIMENSION:49" (1245 cm) BASE UNIT DIMENSION:23.9" (60.7 cm) DRIVE MECHANISM DIMENSION:72" (183 cm) WIDTH:Available in 18" (45.7 cm) and 24" (60.9 cm) MAXIMAL LENGTH:140 feet (42.7m)* MAXIMAL ANLE OF INSTALLATION:Angle of 45 degrees*™ MAXIMAL DISTANCE BETWEEN SUPPORTS:8 feet (2.43 m)* *These values could vary according to the configuration (rise, motor..) and other technical specifications.
