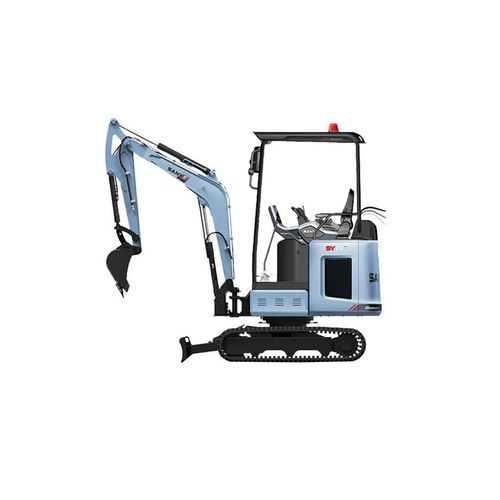

Mini pelleteuse SY19E

compact

Overview
The SY19E is an electric mini excavator engineered for compact-site excavation, utility works and landscaping where low emissions, reduced noise and precise digging are required. The machine combines a 10 kW electric drive with a compact footprint for tight-access jobs.

Highlights

• Faster charging capability for reduced downtime
• Extended battery autonomy for full-shift operation
• Optimized energy management for efficient power use
• Zero tailpipe emissions and lower operating noise

Key specifications

• Model: SY19E
• Type: Electric mini excavator
• Bucket capacity: 0.04 m³
• Engine/Motor power: 10 kW
• Operating weight: 1.95 t
• Arm digging force: 9.2 kN
• Bucket digging force: 15.2 kN
• Max. digging depth: 2360 mm
• Max. digging height: 3665 mm
• Max. digging radius: 4000 mm
• Min. turning radius: 1655 mm
• Standard boom length: 1.89 m
• Total width (retracted/extended): 980/1350 mm

Applications

• Urban and confined-space excavation
• Utility installation and maintenance
• Landscaping and small earthmoving tasks
• Indoor or noise-sensitive site operations
