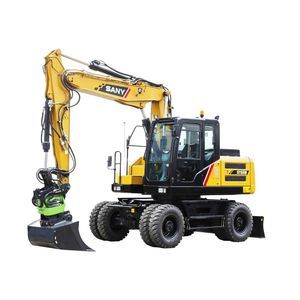

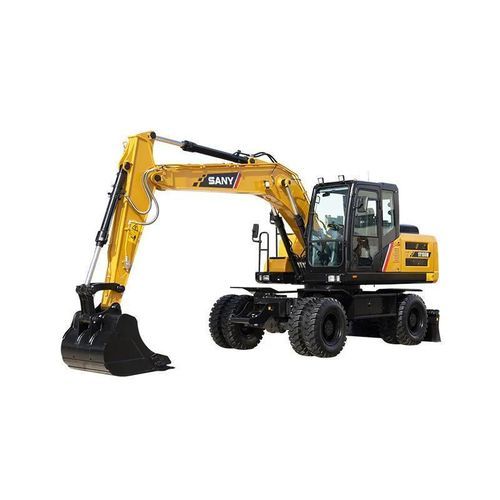

Hydraulic excavator SY155W

Product overview
Wheel excavator SY155W designed for efficient wheel-based excavation in construction and urban works, balancing mobility and digging performance.

Key metrics
Bucket capacity: 0.65 m³
Engine power: 120 kW
Operating weight: 13.7 t

Features

• Innovative electro-hydraulic control system
• DOMCS dynamic optimization intelligent matching technology
• Dual-circuit braking system
• Configurable chassis system with automatic cruise
• Travel shift protection system
• Reverse alarm system
• Automatic air conditioner

Parameters
Arm digging force: 75 kN
Bucket capacity: 0.65 m³
Bucket digging force: 102.3 kN
Engine displacement: 5.193 L
Engine model: 4HK1X
Engine power: 120 kW
Fuel tank: 240 L
Hydraulic tank: 150 L
Operating weight: 13.7 t
Radiator: 10 L
Standard boom: 4.6 m
Standard stick: 2.1 m

Technical specifications

• Arm digging force: 75 kN
• Bucket capacity: 0.65 m³
• Bucket digging force: 102.3 kN
• Engine displacement: 5.193 L
• Engine model: 4HK1X
• Engine power: 120 kW
• Fuel tank capacity: 240 L
• Hydraulic tank capacity: 150 L
• Operating weight: 13.7 t
• Radiator: 10 L
• Standard boom length: 4.6 m
• Standard stick length: 2.1 m
