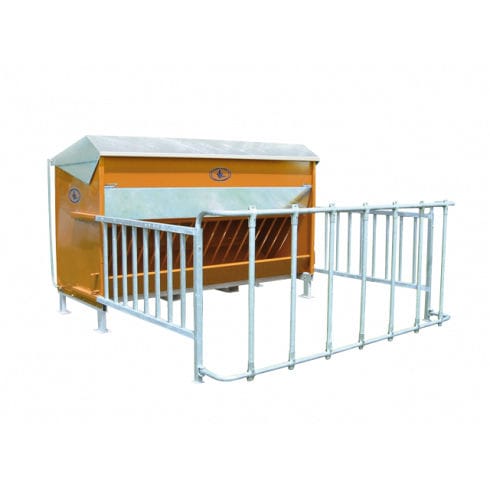

Calf hay rack JBSF 3030

metalmulti-access

Type(s) of ration: Pellets / Meals – Dry fibers optional Trough width: 3.00 m Hopper capacity*: 3,300 Liters (2,244 kg / ~1,100 kg) Dimensions with park(s): 3.20 x 3.00 x 2.00 m Dimensions without park: 3.00 x 1.20 x 2.00 m Park area: 6.45 m2 Empty weight: 705 kg Trough height: 495 mm Transport (empty): Fork Bottom of hopper: Oscillating grid 155 mm wide + access adjustment sheet + sheet with hatch for adjustable flow Roof on gas spring: No (large remote lever) Ref. without pen: JBS 3030 C, SUITABLE FOR LARGE CATTLE Particular strengths: – Change of ration at no additional cost: Simply remove the pellet “Hopper” kit to give access to the grid. – Trough depth: 175 mm. Options: Park only: JBS 30236P
