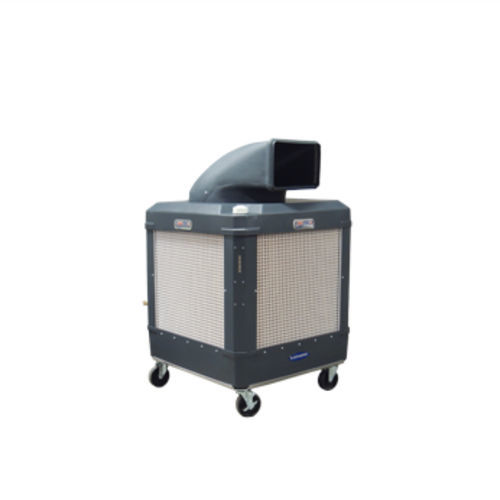

Mobile air conditioning unit WCG-1HPNPBI
evaporative

Mobile air conditioning unit - WCG-1HPNPBI - Schaefer Ventilation Equipment - evaporative
Mobile air conditioning unit - WCG-1HPNPBI - Schaefer Ventilation Equipment - evaporative
Add to favorites
Compare this product

Characteristics

Configuration
mobile
Other characteristic
evaporative

Description

Product Description
WayCool® portable evaporative coolers use the natural cooling process of evaporating water to reduce temperatures up to 30°F at a fraction of the cost of air conditioning. WayCool directs cooled air in a focused narrow stream at high velocity over long distances to provide targeted cooling for employees, customers, equipment and livestock indoors or outdoors.

Features
  • Approximately 75% lower energy consumption and 50% less expensive than an equivalent-capacity portable air conditioner
  • Automatic low-water-level shut-off to prevent pump damage
  • Built-in 24 gallon reservoir for standalone use or connection to garden hose for continuous operation
  • Specially treated cellulose evaporative pads for extended pad life
  • 1 hp unit dimensions: base 33" x 33" x 52" tall; 24 gallon reservoir
  • Two-year warranty
  • Made in the USA


Specifications (as listed)
Air Velocity (@ 10'): 1650
Blade Color: Gray
Brand: Schaefer
Cfm (free Air): 3020
Housing Material: ABS Plastic
Maximum Duct Length (feet): TBD
Phase: 1
Speeds: 2
Vfd Compatible: No
Cfm/watt (free Air): 4
Cord: Included - Wired
Frequency (hz): 60
Nameplate Amps: 12.4
Power (hp): 1
Product Net Weight (lbs): 205
Performance Test #: Schaefer
Switch: On product
Voltage: 115
Blade Material: Galvanized Steel
Cfm (high): 3020
Product Color: Gray
Product Shipping Dimensions (in): 36 X 36 X 60
Speed Control Compatible?: No
Able To Ship Small Parcel: No
Cfm (low): 2040
Cfm Range (free Air): 2501 - 5000
Cord Length (feet): 9
Distinguishing Feature: Cools Air via Evaporative Cooling
Fixed Or Portable: Portable
Oscillating: No
On Board Reservoir: Yes
Country Of Origin: US
Housing Color: Gray

Technical specifications
  • Air Velocity (@ 10'): 1650
  • Cfm (high): 3020
  • Cfm (low): 2040
  • Cfm Range (free Air): 2501 - 5000
  • Power: 1 hp
  • Voltage: 115 V
  • Frequency: 60 Hz
  • Nameplate Amps: 12.4 A
  • Cfm/watt (free Air): 4
  • Speeds: 2
  • Cord Length: 9 feet
  • Housing Material / Color: ABS Plastic / Gray
  • Blade Material / Color: Galvanized Steel / Gray
  • Product Net Weight: 205 lbs
  • Product Shipping Dimensions: 36 x 36 x 60 in
  • On Board Reservoir: Yes (24 gallon) — can connect to garden hose for continuous use
  • Automatic low water level shut-off: Yes
  • Distinguishing Feature: Cools air via evaporative cooling
  • Made in: US
  • Warranty: Two year
