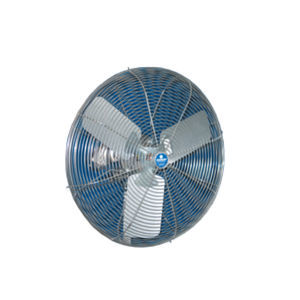

Greenhouse fan 36PFR-Y

farm buildingfor air circulationceiling

Schaefer OSHA compliant circulation fans meet all OSHA safety regulation while delivering maximum airflow. These 2-speed fans have the versatility to be mounted on a ceiling, wall, pedestal or cart, which makes them the ideal cooling solution for any commercial, industrial or agricultural facility. Features Matched direct drive motors and blades for highest achievable levels of airflow, rated up to 12,000 cfm Powder coated steel guards for corrosion resistant and durability Energy efficient designed for additional cost savings, draws as little as 1.6 amps Thermally protected, heavy-duty, maintenance free, 2-speed motors for long life Two year warranty Made in the USA SPECIFICATIONS Air Velocity (@ 10'):TBD Blade Color:Metallic Brand:Schaefer Cfm (free Air):12120 Drive:Direct Phase:1 Speeds:2 Vfd Compatible:No Cfm/watt (free Air):23.3 Cord:Induded - Wired Frequency (hz):60 Guard Color:Yellow MountType Induded:Pedestal Nameplate Amps:5.2/2.8 Number Of Wings:3 Power (hp):1/2 Product Dimensions (1X W X H Inches):TBD Product Net Weight (lbs):(FAN) 59 /(PEDESTAL):28 Performance Test#:675 Switch:On product Voltage:115 Maximum Rpm:1075 Air Velocity (@ 5 Times Diameter):TBD Blade Material:Aluminum Cfm (high):12120 Cfm Calculation Standard:ANSI/AMCA Standard 230-99 Product Color:Yellow Product Shipping Dimensions (in):(FAN) 41 X 41 X 15 / (PEDESTAL) 36X7X34 Speed Control Compatible?:No Able To Ship Small Parcel:No Cfm (low):8750 Cfm Range (free Air):10001 -15000 Cord Length (feet):10 Fixed Or Portable:Portable Guard Material:Powder Coated Steel Oscillating:No Product Certifications:CSA Country Of Origin:US Guard Spacing (inches):1/2 OSHA Cfm/watt (@0.10"):TBD
