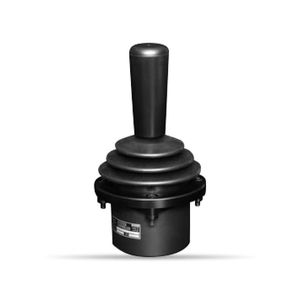

Hand operated joystick H40JH

Hall effectmultifunctioncontactless

H40JH Series Hall Effect Joystick - Hall effect joystick - Low-cost High protection 3-dimensional coordinate type - Single output, dual cross output, dual parallel output - With dust proof rubber cover - With spring return device Standard Mechanical Specifications - Operating angle: Approx.±20°(X/Y), ±30°(Z) - Operating force: Approx.1~4N (X/Y), 40~80Nm.m(Z) - Mechanical life expectancy: Approx.5,000,000 operations(X/Y), Approx.3,000,000 operations(Z) - Operating temperature range: -20℃~+60℃ - Vibration: 10~55Hz 98m/S2 - Shock: 294m/S2 Standard Electrical specifications (Hall effect potentiometer) - Input voltage: 5V - Output signal: 0.5V~4.5V - Electrical roating angle:Approx.20°(X/Y), Approx. 30°(Z) - Independent linearity tolerance: ±3% - Load resistance: - >10KΩ - - - Dielectric strenghth: 1 minute at 500V.A.C - Insulation resistance: >1000MΩ at 500V.D.C H40JH can be customized in accordance with your special requirements. Please contact us at trade1@sakae.cn for customization.
