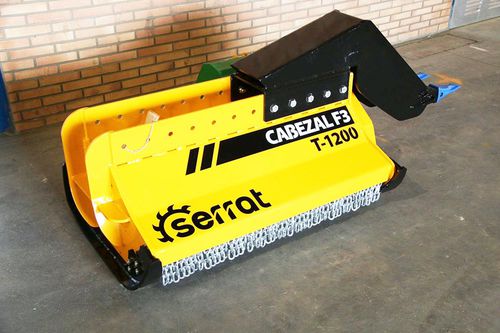

Mounted mulcher CABEZAL F3flailknifeforestry
Add to favorites
Compare this product
Characteristics
- Type
- mounted
- Technology
- flail, knife
- Applications
- forestry
- Number of hammers
- 12 hammers
- Number of knives
- 18 knives
- Other characteristic
- hydraulic, for excavators, fixed
- Cutting width
800 mm, 1,000 mm, 1,200 mm, 1,400 mm
(31.5 in, 39.37 in, 47.24 in, 55.12 in)- Rotational speed
2,200 rpm
(13,823 rad.min-1)- Weight
618 kg, 695 kg, 771 kg, 839 kg
(1,362.46 lb, 1,532.21 lb, 1,699.76 lb, 1,849.68 lb)
Description
Adaptable for excavators and special carriers having a weight between 5 and 15 Ton.
Steel-plate chassis of 8 mm with the hooking screwed on the top of the mulcher, which reinforce the chassis, giving the possibility of several positions of use.
Suitable for the maintenance of forest, riverbanks, bushes up to 8 cm of diameter.
Non-wear steel-plate chassis, thickness 8 mm.
Rotor POLSER + of Ø 420 mm.
Mulcher for excavators having a weight between 6 and 15 t.
3 XPC side belt transmission.
Double safety chains.
Bearings of the rotor of high rotation speed.
Hydraulic engine with pistons.
Valve of recirculation incorporated into
the motor.
Front skid shoes.
Compact drive cover.
Swinging small forged forestry hammers 360° or fixed tooth with tip in tungsten.
Model built under EC Normative.
Safety indicators visible to personnel.
