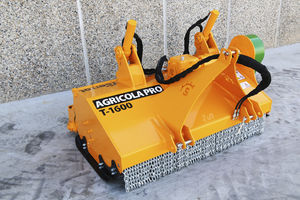

Mounted mulcher ABATIBLE PRO+
hammerfor orchards20 hammers

mounted mulcher
mounted mulcher
mounted mulcher
mounted mulcher
mounted mulcher
mounted mulcher
mounted mulcher
Add to favorites
Compare this product


Characteristics

Type
mounted
Technology
hammer
Applications
for orchards
Number of hammers
20 hammers, 16 hammers, 24 hammers, 28 hammers
Other characteristic
PTO-driven, hydraulic, for tractors, folding
Cutting width

3,800 mm, 4,000 mm, 4,800 mm, 5,400 mm, 6,300 mm
(149.61 in, 157.48 in, 188.98 in, 212.6 in, 248.03 in)

Rotational speed

1,000 rpm
(6,283 rad.min-1)

Tractor power

Max.: 162 kW
(220.3 hp)

Min.: 92 kW
(125.1 hp)

Weight

2,574 kg, 2,650 kg, 2,900 kg, 3,063 kg, 3,334 kg
(5,674.7 lb, 5,842.25 lb, 6,393.41 lb, 6,752.76 lb, 7,350.21 lb)

Description

Heavy-duty high body mulcher conceived for very large farms and agricultural contractors. Robust machine designed for very intensive mulching, intended for mulching grass in orchards, nurseries and park maintenance, straw, maize stalks, and on fallow land. Depending on the plantation, different working widths can be set between 3,80m and 6,30m thanks to our hydraulic beam. The innovative and practical device for opening and closing the rotors is equipped with special hitches and safety valves for transport. The 550mm diameter mulching rotor delivers maximum throughput. A heavy steel beam forms a fixed leveling point, relative to which the two rotor structure can be lifted and lowered, the two rotor overlap and can work independently of each other. It gives also better users visibility across the whole working width.The inside belt transmission allows us to approach the lateral edges as close as possible to the feet of the trees and towards the field edge. Steel-plate chassis, thickness 8 mm. Rotor POLSER of Ø 550 mm. Gearbox SERRAT. 2 x 4 XPC side belt transmission. Forged agricultural hammers Serrat. Hammers guaranteed against breakage. GIROSTOP System. Supports of bearing rotor in steel. Oscillating bearings of double row of rollers. Front protection curtain. Obturations antiwire in rotor. Double bearing on rear roller. Rear height-adjustable rollers. PTO 1.000 rpm. Hydraulic folding exclusive design by SERRAT. Reversible. Freewheel on transmission. Rear gum over the roller. Model built under EC Normative. Safety indicators visible to personnel.
