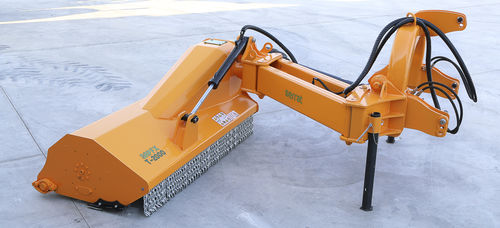

Mounted mulcher DAP FX
offsethammerforestry

mounted mulcher
mounted mulcher
mounted mulcher
mounted mulcher
mounted mulcher
mounted mulcher
mounted mulcher
Add to favorites
Compare this product

Go to the Serrat Broyeurs website for more information

Characteristics

Type
mounted, offset
Technology
hammer
Applications
forestry
Number of hammers
20 hammers, 16 hammers, 24 hammers
Other characteristic
PTO-driven, hydraulic, for tractors
Cutting width

2,000 mm, 2,300 mm, 2,500 mm
(78.74 in, 90.55 in, 98.43 in)

Rotational speed

1,000 rpm
(6,283 rad.min-1)

Tractor power

Max.: 180 ch
(180 hp)

Min.: 132 ch
(132 hp)

Weight

1,900 kg, 2,150 kg, 2,300 kg
(4,188.78 lb, 4,739.94 lb, 5,070.63 lb)

Description

Offset mulcher of high range with forestry rotor, for works in agricultural margins, banks, highways, channels, roads and others clears of public works for tractors between 120-180 CV. It incorporates safety system thanks to a valve positionned in the cylinder of elevation of the arm. Angulation +90º / -65º. Rotor POLSER+ of 550 mm Ø with forestry SERRAT hammer swinging 360º. Non-wear steel-plate chassis, thickness 10 mm. Rotor POLSER+ of Ø 550 mm. Gearbox SERRAT. 4 XPC side belt transmission. Double transmission with a centre shaft and homocinetic knot on the second transmission. Supports of bearing rotor in steel. Height-adjustable rear roller. Oscillating bearings of double row of rollers. Front protection curtain. Front skid shoes. Double bearing on rear roller. Angulation +90º/-65º. Hydraulic lateral offset mulcher. Safety valve. Model built under EC Normative. Safety indicators visible to personnel.
