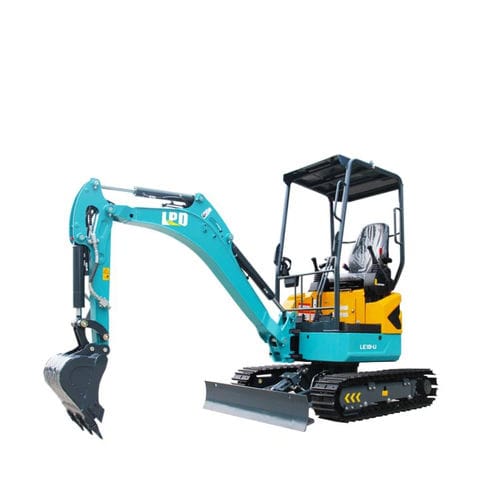

Mini pelleteuse LE18U2K-D

hydraulic

Through the application of comprehensive and thorough efficient hydraulic circuit and automatic idle speed and economy mode technology, the power consumption of the previous machine is reduced by 20%. Features: 1. Improve fuel efficiency and reduce fuel consumption by 20%. Through the application of comprehensive and thorough efficient hydraulic circuit and automatic idle speed and economy mode technology, the power consumption of the previous machine is reduced by 20%. 2. Equipped with a green engine. 3. Convenient repair and maintenance. The machine cover adopts an easy-touch pop-up opening method and a spacious interior space, which is convenient for daily inspection and maintenance (such as radiator cleaning and engine maintenance and repair). Machine Parameter Weight kg 1810 Dimension mm 3608 x 990 x 2375 Track Width mm 230 Working Parameter Bucket Volume m³ 0.04 Maximum Excavation Depth mm 1911 Maximum Excavation Height mm 3540 Maximum Discharge Height mm 2243 Fuel Tank L 19 Engine Brand and Model Kubota D902-E4B-CBH-1 Stroke / 4 Emission / EPA4, EURO 5 Cooled Way / Water Cylinder / 3 Rated Speed rpm 1600 Performance Driving Speed km/h 3.9 Swing Speed r/min 10 Grade Ability / 30° Bucket Digging Force KN 8.5 Traction Power KN 13.5 Hydraulic System Main Pump Rated Flow L/min 2*17.2+10.8 Working Pressure MPa 21.6+18.6 Drive System Pressure MPa 24 Swing System Pressure MPa 11
