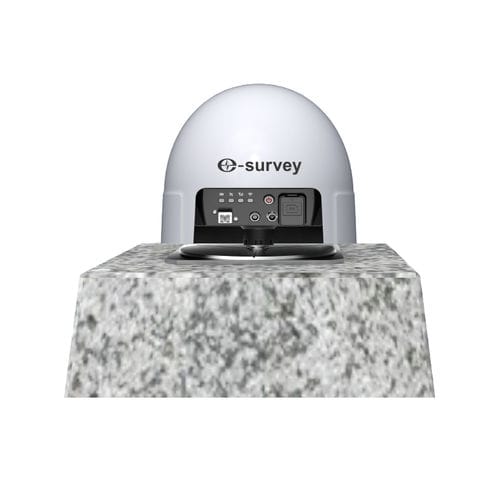

Satellite receiver eDMR1

WiFiGNSSRS485

INTEGRATED GNSS MONITORING RECEIVER Independently designed and developed by eSurvey GNSS, the eSurvey eDMR1 features high stability, high reliability, and simple operation. It solves the problems of high cost and high deployment consumption of traditional GNSS monitoring equipment. It can be applied to monitoring the displacement and deformation of geological disasters and reservoir dams, etc., and provide all-weather high-quality monitoring results. The eDMR1 can collect data by simultaneously connecting to multiple sensors, like rainfall sensor, water level sensor, seepage, seepage pressure sensor, camera, etc., and transmit all collected data. It owns strong edge computing capability and supports local front-end static solutions. Benefiting from the built-in warning model based on multi-parameter calculation and analysis, it can realize front-end multi-parameter intelligent calculation, analysis, and warning forecast in situations, like extreme weather, no public network, etc. Product Details - High Static Accuracy: Horizontal accuracy up to ±2.5 mm+0.5 ppm, vertical accuracy up to ±5 mm+0.5 ppm. - Multiple Communication Mode: Supports 4G, LoRa, Wi-Fi, RS485, and RJ45. - High Reliability: Protection level IP68. Built-in large-capacity lithium battery supports 25 hours of continuous working in case of abnormal power outage. - Impressive Memory Storage: Internal 32GB on-board memory (stores data for more than 2 years), expandable to 512GB with external memory card. - Independent Front-end Solution: Built-in embedded solution engine for dynamic and static solution. Solution results can directly access the RTU/monitoring platform. - External Sensors: Supports monitoring sensors with RS485 modbus protocol, provides power and network for sensors. Supports RTK function triggering through integrated MEMS. Key Features / Technical Specifications - High static accuracy: ±2.5 mm+0.5 ppm (horizontal), ±5 mm+0.5 ppm (vertical) - Communication: 4G, LoRa, Wi-Fi, RS485, RJ45 - Protection: IP68 - Battery: Large-capacity lithium, 25 hours continuous operation - Memory: 32GB internal, expandable to 512GB - Edge computing and local static solutions - Multi-sensor support (rainfall, water level, seepage, pressure, camera, etc.) - Built-in multi-parameter warning model - Supports front-end intelligent calculation, analysis, and warning forecast
