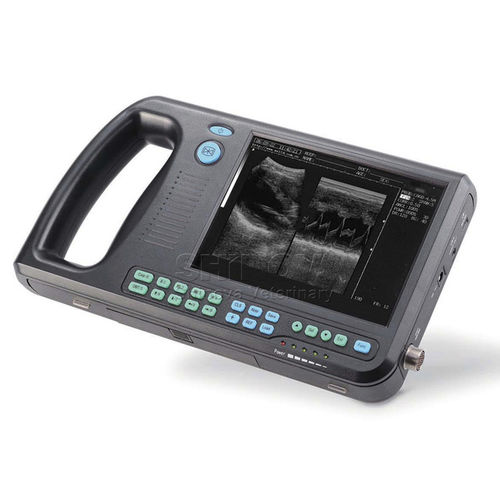

Portable ultrasound scanner SonoScan A1V

for cattlefor equinesfor dogs

Palmtop SonoScan A1V is the latest model by us,weighting only 1.3KG,is distinguishable by its bright and clear image quality. The interchangeable probes offer a wide range of diagnostic applications.This scanner is a cost effective solution for family doctors,veterinary scanning.The complete software and the high product versatility are available in it. Specifications Scanning Method: Convex, Micro-convex, Linear, rectal Display Mode: B, B+B, B+M, M Gray Scale: 256 levels Monitor: 6.4 inch TFT color LCD Image Procession: DFS, DRF, RDA, VGA/DSC and Image Post Procession 128 frames for cine-memory 32 image permanent storage Image magnification: ×1.0, ×1.2, ×1.5, ×2.0 times 4 focusing combination selectable 4 different coded-color available 15 difference kinds of body marks with difference calipers. Measurement in Distance, Circumference/Area, Time/Heart Rate/EF rate for heart, and GS, CRL, BPD, HC, FL, AC for OB/GY measurement, and Gestational Age, Fetal weight, EDD calculation. Characteristic showing in real-time clock, ID, Sex, Age, Focusing Info and Gain (Near, Far, Overall) info. PAL-D output Mouse interface Configurations Standard: Main unit + 6.5MHz rectal linear probe Optional: 1) R40/3.5MHz convex probe 2) R20/5.0MHz micro-convex probe 3) L40/7.5MHz linear probe
