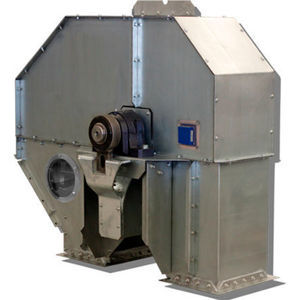

Vertical bucket elevator ECH 300
Add to favorites
Compare this product
Characteristics
- Options
- vertical
Description
Overview
The heavy-duty bucket elevator ECH is engineered for continuous grain handling and transport in high-volume agricultural installations. Designed for 24/7 operation, the model combines abrasion-resistant materials and service-friendly access to minimize downtime.
Range
Key features
Top inspection hatch for simplified maintenance. Anti-wear steel reinforcement in critical zones. Streamlined intermediate sections and welded solutions in critical areas. Reinforced protection for mechanical components to extend service life.

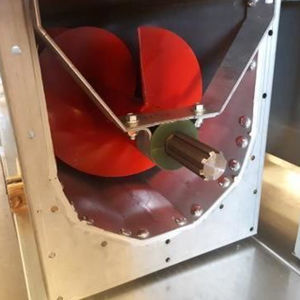

Head sections
The interior of the head section (ECH) is shielded with HARDOX 450. It includes an integrated bearing monitoring system and belt misalignment sensors. Large, easily accessible gates facilitate inspection and maintenance. The torque arm is specially designed by Silos Córdoba. Bearing supports are reinforced with hot-dip galvanized welded reinforcements.
Tensioning section
The tensioning section features reinforced internal protection, integrated bearing monitoring and belt misalignment sensors. Gates and access points are spacious for easy service. Bearing supports are hot-dip galvanized and welded to increase durability.
Register section

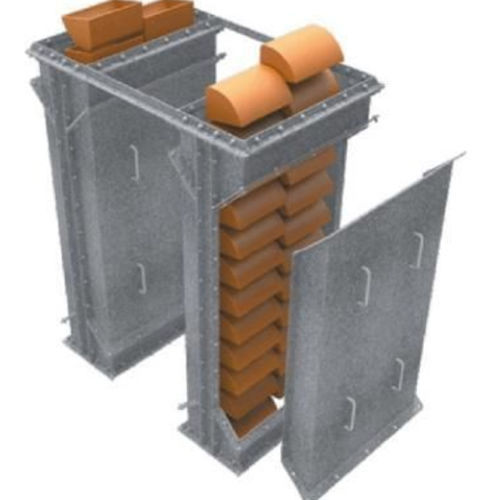

The register section provides large doors for easy installation and maintenance of the belt and buckets. Built from welded, hot-dip galvanized plate, it includes access doors on all sides to simplify inspection and fitting of the belt and buckets.
Characteristics / technical specifications
The heavy-duty bucket elevator ECH is engineered for continuous grain handling and transport in high-volume agricultural installations. Designed for 24/7 operation, the model combines abrasion-resistant materials and service-friendly access to minimize downtime.
Range
- Bucket elevator
- Belt conveyor
- Chain conveyor
- Enclosed belt conveyor
Key features
Top inspection hatch for simplified maintenance. Anti-wear steel reinforcement in critical zones. Streamlined intermediate sections and welded solutions in critical areas. Reinforced protection for mechanical components to extend service life.
Head sections
The interior of the head section (ECH) is shielded with HARDOX 450. It includes an integrated bearing monitoring system and belt misalignment sensors. Large, easily accessible gates facilitate inspection and maintenance. The torque arm is specially designed by Silos Córdoba. Bearing supports are reinforced with hot-dip galvanized welded reinforcements.
Tensioning section
The tensioning section features reinforced internal protection, integrated bearing monitoring and belt misalignment sensors. Gates and access points are spacious for easy service. Bearing supports are hot-dip galvanized and welded to increase durability.
Register section
The register section provides large doors for easy installation and maintenance of the belt and buckets. Built from welded, hot-dip galvanized plate, it includes access doors on all sides to simplify inspection and fitting of the belt and buckets.
Characteristics / technical specifications
- Model: ECH
- Intended use: heavy-duty grain handling for continuous 24/7 operations
- Materials: HARDOX 450 protection in critical wear areas
- Maintenance: top inspection hatch, large service doors and access on all sides
- Monitoring: integrated bearing monitoring system and belt misalignment sensors
- Reinforcements: bearing supports and sides reinforced with hot-dip galvanized welded reinforcements
- Design: simplified intermediate sections and welded solutions in critical zones
- Drive/pulley: optimized pulley design to reduce grain accumulation
- Documentation: technical datasheet available on the product page
