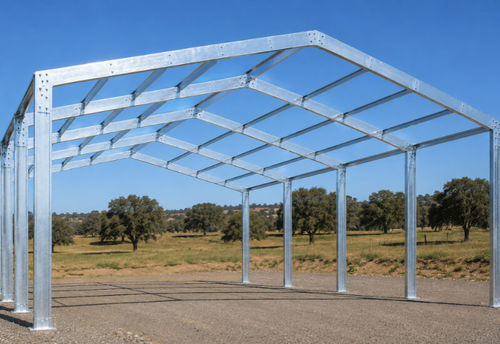

Metallic storage building M series

livestockfor cattlegoat

Overview
Silos Spain bolted metal buildings are industrial steel structures manufactured in S450 steel with ProMag coating, designed for livestock, agricultural and industrial projects that require reliable, fast on-site assembly and modular expansion. The system is assembled from a 3-metre starter module and can be expanded in depth by adding 3-metre modules without on-site welding or demolition.

Main benefits

• Bolted S450 steel construction with ProMag corrosion protection
• Assembled with metric grade 8.8 bolts; no on-site welding required
• Fast, tool-friendly assembly; in many configurations no complex foundations required
• Modular expansion: add 3-metre modules in depth without altering the existing structure
• Can be dismantled, relocated or expanded later
• Five standard widths cover typical projects; custom engineering available for special dimensions

Available models (standard widths — module = 3 m)

• M-14 | Width: 14 m | Height: 2.50 m (min.) — 4.00 m (max) | Area per module: 42 m² | Depth per module: 3 m
• M-12 | Width: 12 m | Height: 2.50 m | Area per module: 36 m² | Depth per module: 3 m
• M-10 | Width: 10 m | Height: 2.50 m | Area per module: 30 m² | Depth per module: 3 m
• M-8 | Width: 8 m | Height: 2.50 m | Area per module: 24 m² | Depth per module: 3 m
• M-6 | Width: 6 m | Height: 2.50 m | Area per module: 18 m² | Depth per module: 3 m

How the modular system works
Begin with a starter module (self-supporting structure with four supports) and expand the building by adding 3-metre extension modules as needed. Each extension shares supports with the previous section; typically only two additional supports are required per added module. This enables phased growth with minimal site work.

Common uses

• Cattle housing
• Sheep and goat shelter
• Agricultural machinery shelter
• Feed and forage storage
• General agricultural storage
• Industrial and logistics warehouses
• Workshops and service buildings
• Wineries and produce stores

FAQ highlights

• Can the building be expanded without dismantling the existing structure? — Yes. The modular system adds 3-metre modules in depth without dismantling existing sections.
• What widths and depths are available? — Five standard widths: 6, 8, 10, 12 and 14 metres. Depth is configured in 3-metre modules; custom sizes available by engineering design.
• How long does assembly take? — Assembly time depends on building size and site conditions; the bolted, prefabricated system is designed for fast on-site assembly and avoids on-site welding.
• What cladding options are compatible? — Metal sandwich panels, galvanised sheet, EPS, polycarbonate and translucent fibreglass; combinations (e.g., concrete plinth + panel) are possible.

Technical specifications

• Material: S450 structural steel
• Protective coating: ProMag coating for corrosion resistance
• Assembly: bolted connection system using metric grade 8.8 bolts; no on-site welding required
• Modular unit depth: 3.0 m per module (expandable section-by-section)
• Standard widths: 6 m, 8 m, 10 m, 12 m, 14 m
• Standard module heights: typically 2.50 m (min.) — up to 4.00 m (project dependent)
• Area per module (examples): 6 m → 18 m², 8 m → 24 m², 10 m → 30 m², 12 m → 36 m², 14 m → 42 m²
• Fast assembly: no complex foundations in many configurations; modular section-by-section expansion
• Typical bolting: metric grade 8.8 bolts
• Applications: livestock buildings, machinery shelters, storage, workshops, industrial warehouses
