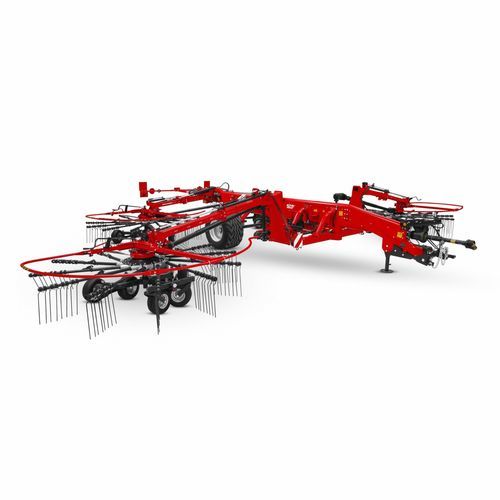

Rotary rake STAR HD 1250|50 TC

center deliverymulti-rotorharvesting

The STAR HD 1250|50 TC is a trailed four-rotor rake from SIP's HD line, designed for professional raking across large widths. It forms a clean central swath to simplify harvesting operations and reduce time and fuel consumption.

Key features

• ISOBUS-ready (available on the mechanical version) for tractor-compatible control.
• Electro-hydraulic separate rotor lift — allows individual lift control for each rotor; options to lift only left or only right rotors, or both front or both rear rotors.
• Mechanical working height adjustment with indicator for precise swath formation adapted to field conditions.
• Hydraulic front rotor relief with a pressure gauge adjustable from the tractor cab for optimal rotor pressure management.
• Road safety equipment: safety boards and lighting supplied as standard for safe transport.
• Brake options: hand parking brake; double-acting air or hydraulic brakes available as required equipment for road compliance.

Standard equipment

• Drawbar: transport drawbar with 2-point hitch.
• Drive: PTO shaft with safety clutch.
• Hydraulic connection: 1x double-acting (1DA).
• Working height adjustment: mechanical.
• Rotor lift: electro-hydraulic separate.
• Rotor chassis: double swivel wheel (front on the rotor).
• Other: lighting equipment for road transport.

Technical specifications

• Working width: 9.9-12.5 m
• Swath width: 1.3-2.2 m
• No. of double spring tines per arm: 4
• No. of tine arms per rotor: 12-13
• Rotor diameter: 3.33 m
• PTO rotation speed: 540 rpm
• Recommended PTO speed: 400-500 rpm
• Weight: 5100 kg
• Power requirement: 89/120 kW/HP
• Capacity: 18.5 ha/h
• Transport width: 2.99 m
• Transport height: 3.3-3.99 m
• Transport length: 9.5 m
• Tyres (rotor): 16x6,50 - 8
