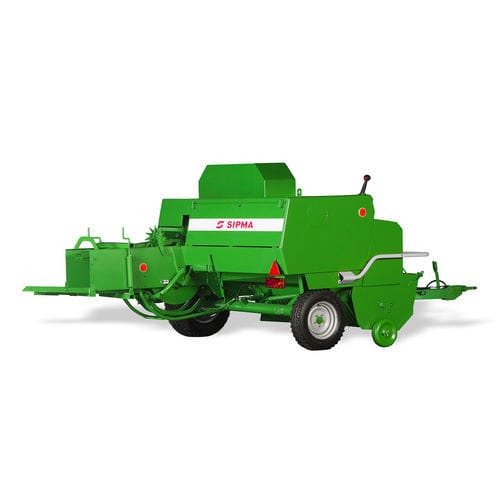

Square baler PK 4000 KOSTKA, PK 4010 KOSTKA

fixed chamber

SIPMA PK 4000 KOSTKA and SIPMA PK 4010 KOSTKA cube balers are excellent straw collecting machines, also effective in collection of hay. The optimum design, excellent operating parameters, as well as high durability and reliability are the reasons why SIPMA S.A. has been manufacturing these machines for more than 30 years, continiously improving them. Almost 100,000 machines were sold to farmers so far. •Pressing chamber design allows adjusting the pressure force (up to 180 kg/m³), setting the cube length from 0.3 to 1.3 m and adjusting the plane of the ejected cube. •Balanced crank and piston system improves the working conditions for the operator by eliminating the harmful effect of vibrations affecting the tractor. •Hydraulic pickup lifting system increases the safety and comfort of operation. •Double binding device quickly and accurately binds bales formed by the square baler. •Machine protection devices ensure long-lasting and safe operation. The one-way friction clutch at the flywheel (900 Nm) protects the drive shaft. Behind the flywheel is the main automatic clutch, which protects the whole machine (with six disc springs). The shear bolts protect the needles and binding apparatuses. In addition, the reel and harvester are equipped with overload clutches. •Electrical installation enables driving the machine on public roads without additional costs. •Bale chute (additional equipment) ensures transport of bales directly to trailers towed behind the baler, thus significantly reducing the labour consumption and increasing harvest effectiveness. Moreover, use of the slide increases the pressure ratio.
