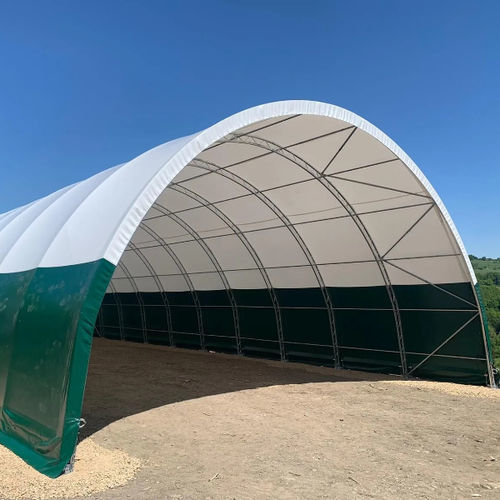

Multi-use storage tunnel

Overview
Arched tent 12 m — combination of a large interior area and a contemporary design, suitable for storage, production and exhibitions. Designed to provide a steel-frame structural solution with modular lengths configurable to client requirements.

General specifications

• Width: 12 metres
• Length: minimum 10 metres (modular according to requirement)
• Approx. height: 6.2 metres
• Structure: steel on grating, profiles 50×50 m
• Anticorrosion protection: zinc coating (galvanisation)
• Standard frame spacing: 2.5 metres

Covers (fabrics)

• Weight options listed on the page: 680 g/m (stated as in source)
• Weight options listed on the page: 900 g/m2
• Additional option listed on the page: 2900 g/m2
• Cover colours: to be defined

Additional information
The design allows modular lengths starting from 10 metres and a steel framework with anticorrosion protection. The specifications for fabrics/floors include several available weights depending on intended use.

Technical characteristics / specifications

• Width: 12 metres
• Length: minimum 10 metres
• Height: approx. 6.2 metres
• Structure: steel on grating, profiles 50×50 m
• Anticorrosion protection: zinc coating (galvanisation)
• Standard frame/side rail spacing: 2.5 metres
• Covers/fabrics: entries for 680 g/m, 900 g/m2 and 2900 g/m2 (options indicated in source)
• Cover colours: to be defined
