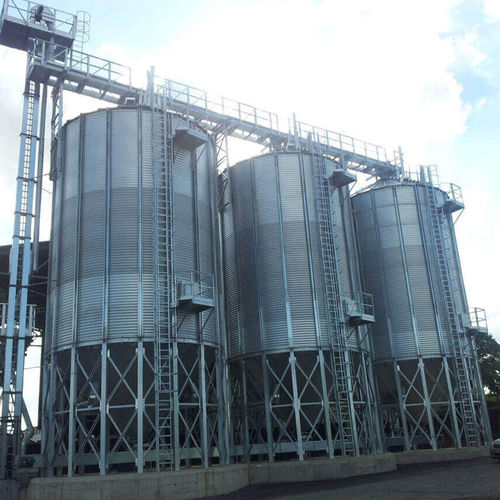

Grain silo
metalroundcone-bottom

grain silo
grain silo
grain silo
Add to favorites
Compare this product


Characteristics

Application
for grain
Material
metal
Form
round, cone-bottom
Volume

Min.: 200 m³
(7,063 ft³)

Max.: 1,900 m³
(67,098 ft³)

Description

Hopper bottom silos are more suitable for short-term storage. They are used mainly for grains such as rice or pellets. Hopper silos are mainly used for short term storage, in areas where it is difficult to have an optimal foundation. They are also recommended for grains such as rice or pellets (more fragile), in which the product can easily break, thus avoiding the use of sweepers for discharge. Instead, the discharge is done by gravity through a 45º or 60º hopper. Main features of the hopper bottom silo: - Hopper bottom silo made of high strength steel S350GD, fully galvanized Z-600 (600 gr/m2) with vertical and externally bolted reinforcements. - Completely bolted joints with 8.8 bichromated bolts and nuts with rubber washers. - Metallic structure support and hot galvanized reinforcements Z-600 (600 gr/m2). - Preformed butyl mastic (BSD) to seal connections panels and to join the cylinder and cone together. - Fixing plates with chemical ground anchors. - Ventilation shafts and ladder on roof. - Inspection door on the roof and on the second ring with access platform and ladder.

VIDEO
