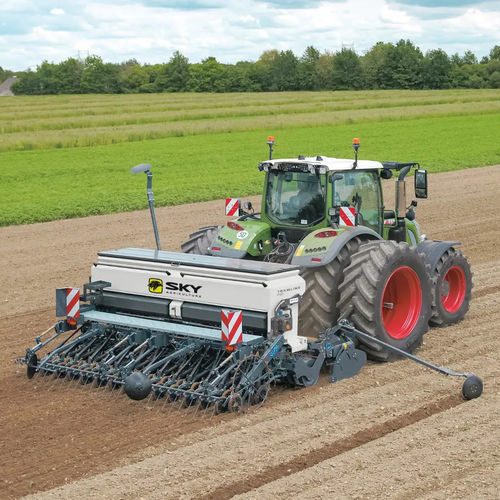

Mechanical seed drill TRAMLINE CX

tractor-mountedmulti-row

Overview
The TRAMLINE CX seed hopper is a highly integrated seeding unit designed to minimise overhang and maximise effective hopper capacity for mounted tillage combinations. A large sun wheel drives the distribution system to prevent wheel tracks on the seedbed.

Careful integration into the tillage tool
Integration close to the tractor linkage reduces overhang, improving use of lift power and increasing usable hopper volume while keeping centre of gravity near the machine.

Key features

• Working widths: 3.00 m and 4.00 m
• Hopper capacity range: approx. 450–1350 L (examples: 800 L standard for 3.00 m, optional 1000 L; 1100 L standard for 4.00 m, optional 1350 L)
• Number of rows: configurable from 20 to 32

An integrated seeder for a proven concept

• 1. Refinement
• 2. Pressing/support
• 3. Placement/implantation
• 4. Covering

Precision distribution system (SKY lug feeders)
The SKY distribution system, driven by a large sun wheel, provides:

• Dosing range: 1.5 to 400 kg/ha
• Versatility for seed types from rapeseed to faba bean
• Quick flow test with the planter placed on the ground
• Total hopper emptying via distribution saddles at the hopper base

P20 or P30 burying unit
Vertical spring positioning on the seed rows and double-acting device deliver:

• Sowing unit pressure up to 30 kg with P30 or up to 20 kg with P20 (compression spring)
• Unit relief for shallow seeding (extended spring)
• High vertical clearance to pass over plant residues
• Option to mount SKY support wheels on the burying line

Technical data
TYPE | TRAMLINE CX (3,00 m) | TRAMLINE CX (4,00 m)
Working width | 3,00 m | 4,00 m
Hopper capacity | 800 L (optional 1000 L) | 1100 L (optional 1350 L)
Number of rows | 20 / 24 / 28 / 32 | 20 / 24 / 28 / 32
Spacing (cm) | 15 / 12.5 | 14.3 / 12.5
Useful loading dims (cm) | 64 x 225 | 64 x 325
Loading height (cm) | 160 | 160
Loading height with extension (cm) | 169 | 169
Weight (indicative) | ~700 kg (3.00 m, 20-row) | ~900 kg (4.00 m, 28-row)

Characteristics / technical specifications

• Model name: Tramline CX
• Brand: SKY Agriculture
• Working widths: 3.00 m and 4.00 m
• Hopper capacity examples: 800 L (3.00 m standard) / optional 1000 L; 1100 L (4.00 m standard) / optional 1350 L; overall range 450–1350 L depending on configuration
• Rows: 20 to 32 (configurable)
• Row spacings (examples): 15 cm, 12.5 cm, 14.3 cm
• Useful loading dims: 64 x 225 cm (3.00 m) / 64 x 325 cm (4.00 m)
• Loading height: 160 cm (169 cm with extension)
• Indicative weight: approx. 700 kg (3.00 m, 20-row) / 900 kg (4.00 m, 28-row)
• Dosing precision: 1.5–400 kg/ha
• Distribution: large sun wheel driven system; total hopper emptying via distribution saddles
• Burying unit options: P20 (up to 20 kg) and P30 (up to 30 kg)
• Design benefits: reduced overhang for better lift use; high vertical clearance to clear residues; SKY support wheels can be fitted on burying line
