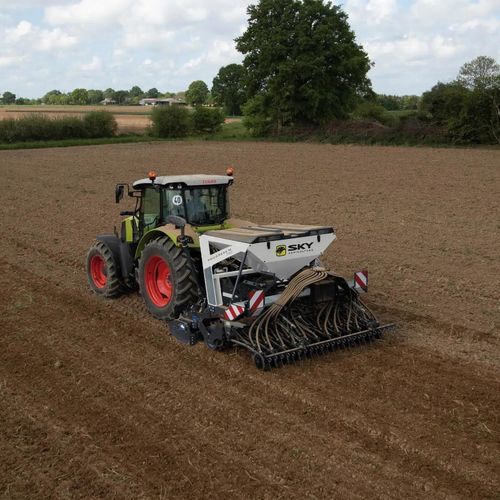

Pneumatic seed drill PROGRESS M

disccoulter24-row

Overview
The Progress M seeder is a straightforward, field-oriented seeding machine designed for reliable operation and easy use. It combines a 3.00 m working width with a 1000 L hopper and is available in P20 and P30 configurations to suit different crop spacing and pressure requirements.

Key features

• Working width: 3.00 m
• Hopper capacity: 1000 L
• Seeding units: coulters or discs; coulter pressure up to 30 kg (P30)

Versions and configurations
Available in two main pneumatic configurations: Progress M P20 (20-row layout with coulters at 20 kg) and Progress M P30 (higher coulter pressure up to 30 kg or disc option). Choose the version that matches your row count and soil conditions.

Ergonomics and accessibility
The hopper is wide and deep to ease loading. Equipment includes a folding staircase, handrail, rigid lid handles and a wide walkway for safe access to the hopper and distribution head. Controls and checks are positioned for operator convenience.

Seeding units and uniform depth
Seeding units follow the soil profile accurately thanks to the machine support on the roller, ensuring consistent seeding depth across the working width. Options include coulters or discs depending on residue and soil type.

Operation and testing
Flow rate testing and adjustments are performed at the rear from a single control station. The rear-mounted distribution head positions the unit forward to optimise the centre of gravity relative to the tractor and allows clear access from the cab.

Technical data
Seeder M | P20 or P30
Width (m) | 3.00
Hopper capacity (l) | 1000
Number of rows | 20 / 24
Row spacing (cm) | 15 / 12.5
Weight (kg) | 720* / 760*
Filling height (cm) | 189
Loading dimensions (cm) | 124×184

Auxiliary equipment – Rotary harrow HR160
Rotary harrow HR160
Width (m) | 3.00
Power (hp) | 160
Number of rotors | 12
Weight (kg) (with packer roller) | 1367
Coupling cat. | II

Technical specifications

• Model: Progress M (P20 and P30 versions)
• Working width: 3.00 m
• Hopper capacity: 1000 L
• Seeding lines: coulters or discs; coulter pressure up to 30 kg (P30)
• Number of rows: 20 (typ.) or 24 (variant)
• Row spacing: 15 cm (20-row) or 12.5 cm (24-row)
• Weight: approx. 720 kg (P20) or 760 kg (P30) — *indicates P30 electric option
• Filling height: 189 cm
• Loading dimensions: 124 × 184 cm
• Optional rotary harrow HR160: width 3.00 m, 160 hp, 12 rotors, weight 1367 kg (with packer roller), coupling category II
• Rotor rotation frequency: standard 1000 rpm; multiple sprocket and speed options available
• Ergonomics: wide/deep hopper, folding staircase, handrail, rigid lid handles, wide walkway
• Flow rate test: performed at the rear from a single control station
