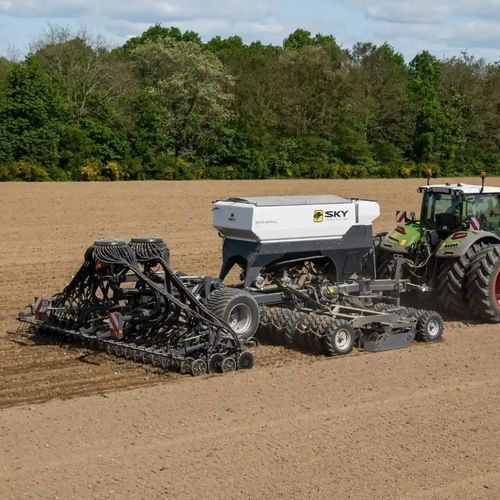

Pneumatic seed drill MAXIDRILL P120

discfoldingtractor-mounted

Overview
After 15 years of development, Maxidrill is positioned as one of the market’s benchmarks. The Maxidrill offers the largest clearance on the market for fast work in all conditions and has been designed to withstand the high stresses associated with high working speeds.

Key features

• Available with up to 4 hoppers: in a single pass the Maxidrill can seed 4 different products at 4 different rates, separate 2 seeding depths, seed all rows or alternate rows (1 out of 2, 2 out of 3).
• Option to fertilize in the seed line and to sow 2 products in the same row.
• Transport and consolidation functions are separate; folding seed drills are fitted with a real axle so as not to penalize roller operation; when working the axle does not touch the ground.
• Seeding line P100: mounted on a 2-beam frame to benefit from two identical seeding units and guarantee uniform pressure; greater clearance between lines; equipped with a depressurizer to deposit seeds without bouncing.
• Discs Ø 415 mounted on independent arms for excellent ground tracking and consistent working depth, even when encountering obstacles.
• Highly precise stainless steel distribution from 1 to 450 kg/ha; automated flow test and no dismantling required to change from small to large seeds.
• Quick hopper emptying via a 2-part folding system allowing emptying into a big bag and access to seed rows for maintenance or disc replacement.
• Quick wheel change: roller wheels mounted in staggered pairs with scrapers; reduces power consumption (up to 25% savings) and allows very fast wheel replacement.
• Two separate air circuits to sow several products at different densities and set different pressures per circuit.

Benefits

• High-speed, versatile seeder suitable for shallow- or deep-tilled soils and direct cultivation.
• Even seedbed quality due to independent-arm discs and uniform pressure seeding units.
• Reduced downtime and easy maintenance (quick emptying, quick wheel change).
• Precise product distribution and flexible multi-product/dual-depth seeding reduces risk of clogging and germ burn when using fertilizers.

Technical data (table)
Models: Maxidrill P120 3m | Maxidrill P120 4m | Maxidrill P120 4m W | Maxidrill P120 6m W
Working width — 3m | 4m | 4m | 6m
Transport width — 3m | 4m | 3m | 3m
Distribution — Pneumatics | Pneumatics | Pneumatic | Pneumatic
Hopper capacity — 3,000 liters | 3,000 liters | 3,000 liters | 4,100 liters
Hopper distribution (with Fertisem) — 60/40: 1,760 l + 1,240 l; 45/55: 1,440 l + 1,560 l; 95/5: 2,900 l + 100 l | 60/40: 1,760 l + 1,240 l; 45/55: 1,440 l + 1,560 l; 95/5: 2,900 l + 100 l | 60/40: 1,760 l + 1,240 l; 45/55: 1,440 l + 1,560 l; 95/5: 2,900 l + 100 l | 60/40: 2,450 l + 1,650 l; 45/55: 1,800 l + 2,300 l; 95/5: 4,000 l + 100 l
Hopper capacity Pro — 120 liters | 120 liters | 120 liters | 120 liters
Row spacing — 15 cm | 14.3 cm | 14.3 cm | 15 cm
Weight without options — 4,200 kg | 5,550 kg | 6,750 kg | 8,350 kg
Number of rows — 20 rows | 28 rows | 28 rows | 40 rows
Number of tool discs — 24 disks | 32 disks | 32 disks | 48 disks
Power requirements — 105 to 150 hp | 120 to 180 horsepower | 140 to 200 horsepower | 210 to 300 hp
Tires — – | – | 600/50 R22,5 | 700/40 R22,5
Number of distributors — 1 SE + free return for turbine; 1 ED for adjustment and lifting; 1 SE for tracers | 1 SE + free return for turbine; 1 ED for adjustment and lifting; 1 SE for tracers | 1 SE + free return for turbine; 1 DE for folding; 1 DE for tracers; 1 DE for axle | 1 SE + free return for turbine; 1 DE for folding; 1 DE for tracers; 1 DE for axle
Loading height — 248 cm | 260 cm | 260 cm | 290 cm

Technical specifications

• Model: Maxidrill P120 (variants: 3m, 4m, 4m W, 6m W)
• Working widths: 3 m / 4 m / 6 m (depending on model)
• Distribution type: Pneumatic
• Hopper capacity: from 3,000 L up to 4,100 L depending on model
• Hopper distribution options (examples): 60/40, 45/55, 95/5 (with Fertisem)
• Hopper Pro capacity: 120 L
• Row spacing: 14.3 cm or 15 cm (model-dependent)
• Number of rows: 20 to 40 (model-dependent)
• Number of tool discs: 24 to 48 (model-dependent)
• Power requirement: from 105 hp up to 300 hp (model-dependent)
• Loading height: 248 cm to 290 cm (model-dependent)
• Discs: Ø 415, mounted on independent arms
• Distribution precision: stainless steel system, range 1 to 450 kg/ha
