Pneumatic seed drill EASYDRILL series

discwith fertilizer applicatortractor-mounted

Overview

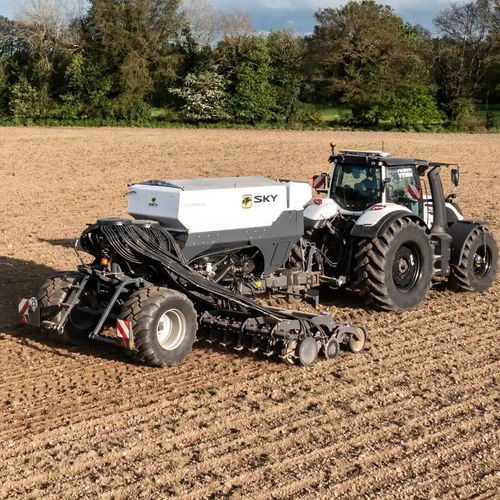

The Easydrill tandem seed drill by SKY Agriculture delivers configurable, accurate seeding for tilled, direct and cover-crop conditions. It combines a beet-type burial system with front and rear gauge wheels to ensure uniform seed placement and controlled sowing depth.

Hoppers and product management
Up to 4 hoppers can be fitted and managed from a single ISOBUS-compatible Quartz terminal. Partitioned hoppers allow two-product seeding with independent rates and depths. Fast emptying with a two-part folding system enables discharge into a big bag and provides access for maintenance.

Distribution and dosing
Stainless-steel distribution provides dosing from 1 to 450 kg/ha. An automated flow test requires no dismantling to switch between small and large seeds. Mechanical distribution is available for fixed 3 m and 4 m models; pneumatic distribution is standard on wider models.

Pressure and discs
Disc pressure is adjustable from 0 to 250 kg per disc by adding shims, allowing adaptation to dry or wet soil conditions.

Two separate air circuits
Two independent air circuits permit different pressures for different products and densities:

• No need to separate small and large seeds
• No clogging risk between fertilizer and seed
• Management of two differentiated depths
• No risk of germ-burn from certain fertilizers
• If fertilizer clogs, seed flow is maintained

Technical summary
Models: Easydrill 3020 / 4020 / W4020 / W6020 / W8020. Transport width: 3 m (4020: also 4 m). Distribution: mechanical (3/4 m fixed) or pneumatic (W models). Hopper capacity: 2,250–5,100 L depending on model. Row spacing: 16.6 cm. Rows: 18–48 depending on model. Power: 75–360 hp. Disc pressure: 0–250 kg. Dosing range: 1–450 kg/ha. Loading height: 204–320 cm. Weight (without options): 3,500–9,250 kg.

Technical features

• Series / models: Easydrill (3020, 4020, W4020, W6020, W8020)
• Brand: SKY Agriculture
• Up to 4 hoppers controlled by a single Quartz ISOBUS terminal
• Partitioned hopper and bottom valve for complete emptying (mechanical versions)
• Automated flow test and stainless-steel distribution
• Adjustable disc pressure 0–250 kg per disc
• Mechanical or pneumatic distribution options according to model
