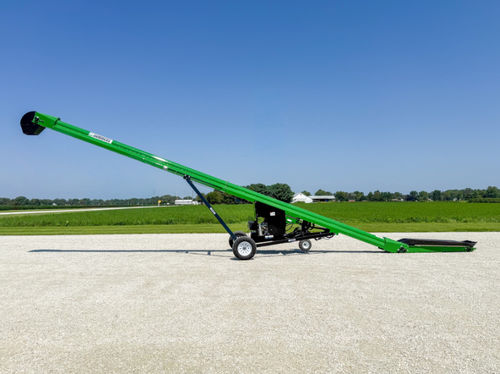

Grain conveyor 1648

beltmobileinclined

Overview
Operations that can’t afford downtime choose conveyors engineered for continuous field use. The 1648 Field Belt from Summers delivers up to 10,000 bu/hr capacity, a two-year warranty, and field service support for demanding harvest and grain‑handling tasks.

Features & Benefits

• Engine & Drive System: Vanguard 40HP EFI engine (Summers certified technicians available).
• Capacity: 7,600 – 10,000 BPH.
• Electric Clutches: Two electric clutches — one for the belt and one for the mover to prevent hydraulic oil overheating.
• Mover: All-wheel drive mover standard for reliable field mobility.
• Warranty: 2 Year Warranty.

Manuals & Literature

• Flyer: Field Belt (PDF available).

Specifications

• Model: 1648
• Conveyor length: 48'
• Belt Width: 16"
• Raised Height: 23' 6"
• Lowered Reach: 20' 3"
• Transport Height: 12' 2"
• Transport Length: 51' 6"
• Intake Reach (from dual mover wheel to end of conveyor): 18' 2"
• Wheel Track Width: 8' 7"
• Total Weight: 3,300 lbs
• Tube Diameter: 10"
• Tire Size: 225/75R15 for main drive, 16x6.5x8 for steering
• Hopper width & length: 30" x 92"
• Extended Hopper Height: 7.5"
