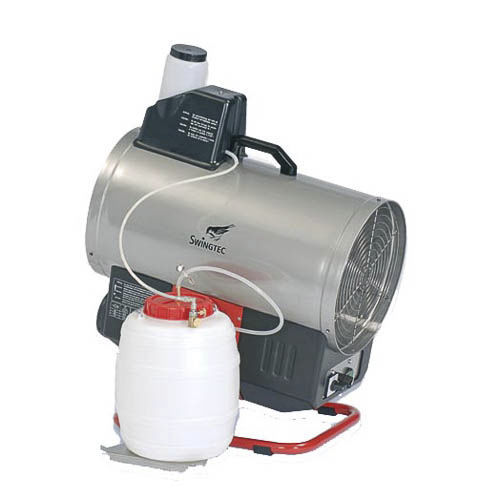

ULV fogger fontan® Compactstar

coldstationarytransportable

Electrically driven ULV cold fog aerosol applicator Different from our fully automatic working fontan® Turbostar and fontan® Twinstar devices, the fontan® Compactstar is a semi-automatic working machine. The device is started manually and stops automatically when the fog liquid tank is empty or after the preselected amount of fog liquid has been discharged. The solution line and the nozzle system are rinsed manually from the rinsing bottle. The stator in the ventilator tube developed in a wind tunnel by Swingtec® allows the treatment of large surfaces/rooms from one position, without moving the device. With the stator, a uniform horizontal and vertical droplet distribution over an area of approx. 60 x 40 m is achieved. Significantly larger areas/rooms can be treated when additional fans are installed. The low-pressure system of 0.35 bar permits the use of nozzles with relatively large diameters, which means that also suspended powder preparations can be easily discharged.
