Electric water heater DH7

oilheat-recovery

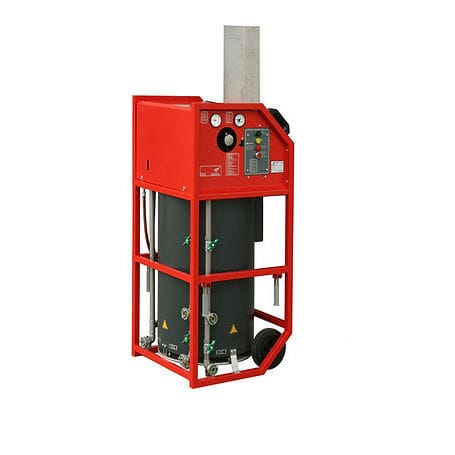

This device is designed for mobile or stationary use. It is installed in a solid tubular frame and it can be carried on four handles or wheeled by means of two wheels located inside the frame. The shower capacity is designed for 90 people per hour with six shower heads in operation, a shower duration of four minutes and a water consumption of about 33 litres per shower nozzle. The device meets the strict requirements of the German Drinking Water Legal Regulation. Technical data (Approximate values) Dimensions 60 x 60 x 133 cm (including wheels, without chimney), height with chimney 170 cm Weight 145 kg Fuel Diesel oil, heating oil or kerosene Fuel supply with connection to a 20 l standard jerrycan Heating coil and piping Stainless steel Exhaust chimney Stainless steel, double-walled, can be touched without risk of burns. The chimney can be mounted and removed. Burner 2-stage with automatic burner control, Weishaupt type, protection class IP43 Burner power 95 kW Water flow rate 500 up to 3000 l/h Temperature increase 30°C at 2700 l/h Shower water temperature Thermostatic controlled, infinitively variable, with fuser setting at 38°C Maximum temperature 95° C Water connections Water inlet, fixed D-coupling, stainless steel, with filter and cleaning access Shower water outlet, two fixed D-couplings, stainless steel, each with a shut-off ball valve Hot water outlet, two fixed D-couplings, stainless steel, each with shut-off ball valve Power consumption 400 Watt Supply voltage 230 V/50 Hz or 110 V/60 Hz Main plug waterproof, protection class IP67 Varnish RAL 3000, fire red (other RAL colours on request)
