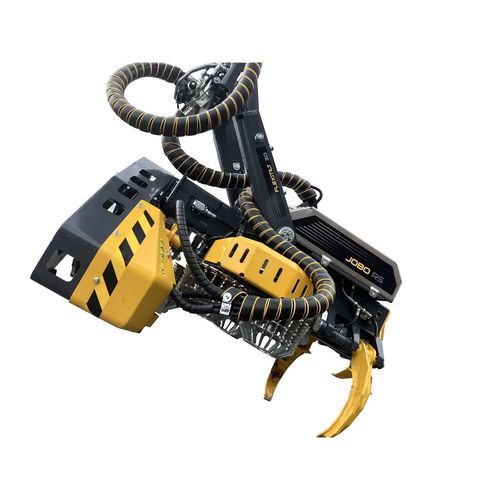

Forest thinning felling head JOBO RS75 COMBI

tree cuttingharvestingforestry

Short description
Powerful stroke harvester head configurable with optional feed rolls. Four specific operation modes allow feed by stroke, by rolls alone or in combined mode. Provides strong feed using stroke and high-speed feed using rolls.

Technical data

• Felling diameter (recommended): max. 40 cm
• Delimbing force: 35 kN at 180 bar
• Hydraulic flow: 30–60 l/min
• Delimbing diameter range: 35 cm down to approx. 2 cm
• Working pressure: 170–200 bar
• Operating voltage: 24 VDC
• Working modes: stroke (75 cm, speed 0.75 / 1.0 m/s) and rolls
• Rolls: 2 × 270 mm, 160 cc (feed approx. 2.8–3.5 m/s, 80–120 l/min)
• Bar and chain: bar 50/54 cm, chain 2.0 mm, .404 in
• Dimensions (L × H × W): 140 × 150 × 95 cm
• Weight without oil: 430 kg

Standard features

• CAN-bus control system (CCD or MID)
• Mechanical saw limiter
• Automatic feed and reverse
• Length from stroke (+/- 5 cm)
• Length from roll (+/- 3 cm)
• Length preselections (6 species × 6 lengths)
• Prepared for stump treatment

Options

• Stump treatment
• Bio-oil tank
• Pump for stump treatment
• Alternative control systems (CCD / MID)

Product specifications

• Brand: Syketec
• Model: JOBO RS50 COMBI
• Product Code: 000235
• Felling diameter (recommended): max. 40 cm
• Delimbing force: 35 kN at 180 bar
• Hydraulic flow: 30–60 l/min
• Working pressure: 170–200 bar
• Operating voltage: 24 VDC
• Working modes: stroke and rolls (stroke: 75 cm, speed 0.75 / 1.0 m/s)
• Rolls: 2 × 270 mm, 160 cc (feed approx. 2.8–3.5 m/s, 80–120 l/min)
• Bar and chain: bar 50/54 cm, chain 2.0 mm, .404 in
• Dimensions (L × H × W): 140 × 150 × 95 cm
• Weight without oil: 430 kg
