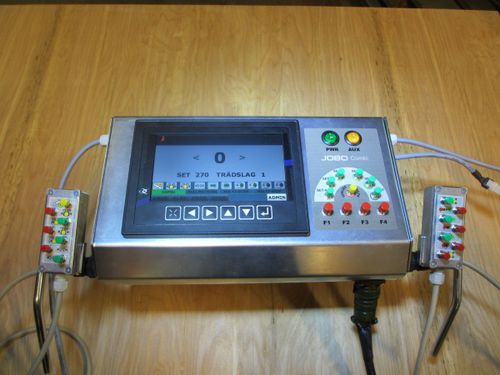

Forestry machinery control system JOBO CAN MID

JOBO CAN MID is an advanced control and measuring sytems built with high quality components and sofisticated control features. The base is a Linux display unit which provides excellent and easy to use menus to fine tune the harvester functions and to follow up the production, even at volume level. Technical features Operating voltage - 9 - 32 VDC Operating temperature - -30 - +70 °C LCD display - 7in WVGA color (800x480) Case, aluminium - IP67 Interface - 2 x CAN 2.0B, ISO 11898 Communication - 1 x USB Real time clock Standard features • Internal diagnostics in real time • Automatic feed and reverse • Length measure from stroke (± 5 cm) • Preselection of lenths (6 x 6 lengths) • Joystick control (require additional CAN-module) • Four operation modes ◘F1 - Combined stroke/rolls ◘F2 - Rolls only ◘F3 - MultiStem™ ◘F4 - MultiGrip™ Options available • Length measure measuring roll (± 3 cm) • Diameter measurement, volume calculation • Pump for stump treatment • Valve board ready for feed roll assembly • Panel mount or split mounting systems
