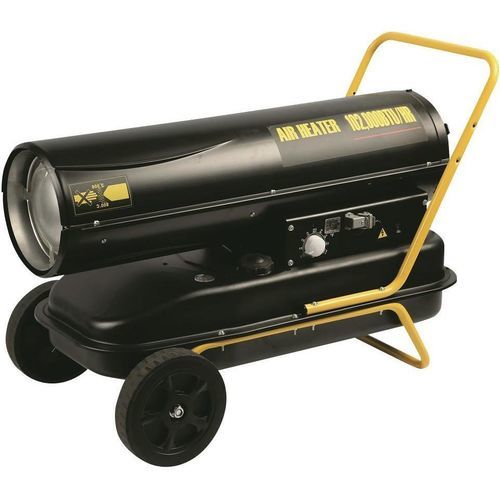

Oil-fired hot air generator GEFUCD30

mobilefarm building

Description
The direct-combustion 30 kW oil hot air generator is built with powder-coated bodywork. Mounted on a wheeled chassis, it operates with an adjustable electronic thermostat or via dry-contact control. The unit provides operating-status information using fault codes. Hot air flow: 720 m3/hour.

Features

• Gross weight: 21 kg
• Tank capacity: 38 litres
• Fuel consumption: 2.8 L/h
• Power supply voltage: 230 V
• Power consumption (electrical): 230 W
• Rated current: 1.1 A

Note

• Not suitable for public access buildings (PRA)

Strengths

• Practicality: mobile unit on wheeled chassis
• Comfort: 38 L tank for extended autonomy
• Comfort: very fast temperature rise
• Safety: stainless-steel combustion chamber with fan cooling
• Safety: automatic shutdown when fuel is depleted

Technical specifications

• Type: Direct-combustion oil hot air generator
• Commercial name: DIRECT-COMBUSTION
• Nominal power: 30 kW
• Hot air flow: 720 m3/hour
• Gross weight: 21 kg
• Tank capacity: 38 L
• Fuel consumption: 2.8 L/h
• Power supply voltage: 230 V
• Electrical power consumption: 230 W
• Rated current: 1.1 A
• Controls: adjustable electronic thermostat or dry-contact control
• Status indication: fault code reporting
• Construction: powder-coated bodywork on chassis with wheels
• Combustion chamber: stainless steel with fan cooling
• Usage restriction: not suitable for public access buildings (PRA)
