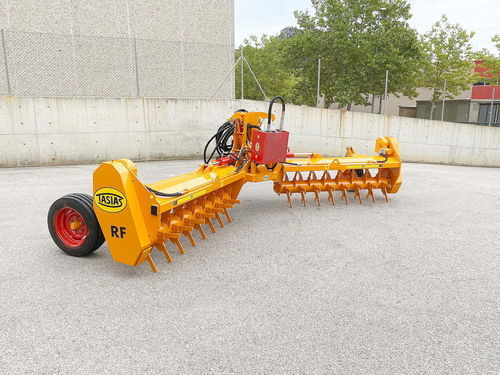

Tractor rock picker RF

Description The RF Stone windrower is designed to remove surface stones on multi-use land. With a front hydraulic drive it can be linked to a rear crusher or collector. The RF includes two adaptive, foldable windrow modules for transport. Adjustable wheels maintain consistent stability and working depth, and the transport safety system keeps modules locked during movement. Controls are accessible from the tractor cab without leaving the seat. The RF handles surface stones up to 30 cm in diameter using replaceable hard-material tines. It is produced in 4, 5 and 6 m working widths to match operational needs.

Features

• Front hydraulic drive
• Windrows stones up to 30 cm diameter
• Front mounting allows simultaneous use of a rear crusher or collector
• 2 adaptive, foldable windrow modules for transport
• Adjustable wheels to ensure stability and consistent working depth
• Transport safety system
• Operated from the tractor cab
• Replaceable hard-material tines
• Available working widths: 4 m, 5 m, 6 m

Models (table) Model | Brake | Working width | Width | Weight | Power | Tyres
RF4 | No | 4 m | 4.73 m | 1200 kg | 130 HP | 200/14.5
RF5 | No | 5 m | 5.73 m | 1320 kg | 150 HP | 200/14.5
RF6 | No | 6 m | 6.73 m | 1530 kg | 160 HP | 200/14.5

Options

• RF4: 4 m working width
• RF5: 5 m working width
• RF6: 6 m working width

Standard equipment

• Oil cooler
• Chain case guard
• Adjustable wheels

Operating advice Working speed: between 1-3 km/h

Technical specifications

• Drive: front hydraulic
• Windrow capacity: surface stones up to 300 mm (30 cm) diameter
• Front mounting allowing simultaneous use of a rear crusher or collector
• Modules: 2 adaptive, foldable windrow modules for transport
• Wheels: adjustable to ensure stability and uniform working depth
• Transport safety system to keep modules folded and secure
• Control: operated from the tractor cab
• Tines: hard-material, replaceable
• Available working widths: RF4 = 4 m; RF5 = 5 m; RF6 = 6 m
• Weight by model: RF4 = 1200 kg; RF5 = 1320 kg; RF6 = 1530 kg
• Recommended power by model: RF4 = 130 HP; RF5 = 150 HP; RF6 = 160 HP
• Tyres: 200/14.5
• Recommended working speed: 1-3 km/h
