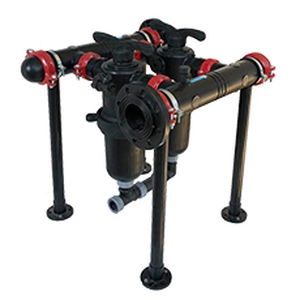

Irrigation disc filter Adir TDSB

stationarysemi-automatic

TAVLIT expands its offering with standard filter batteries for various flow rates. The batteries are based on the innovative semi - automatic disc filter TDS and supplied complete with all components and are ready for field installation.The flexibility of the systems offered by TAVLIT enables users to have the perfect solution for their needs. Applications: • For AG, turf and landscape irrigation when higher flows are used. • Most suitable for low quality water. • Enables the user to perform flushing without dismantling the filter. • Applicable when water supply cannot be interrupted even during flushing. • Simple and economical solution. • Customizable according to client requirements. Technical information: • Available batteries 2–6 units of the TAVLIT all plastic semi- automatic Disc filter TDS. • Recommended flow rates 40-200 m3/h; (180-900 gpm). • Max. operating pressure 10 bar; (145psi). • Batteries are supplied with Flanged connection for easy installation. • An air release valve should be installed at the inlet to our filtration system on the top elbow at the system inlet. • A butterfly manual valve should be installed at the system inlet. • In order to drain the flush water from the secondary filter, of the semi - automatic disc filter, (TDS), a 20 mm pipe should be connected to the ½” valve located at the screen flushing port of each of the filters.
