Regulating valve

irrigationthreaded2-way

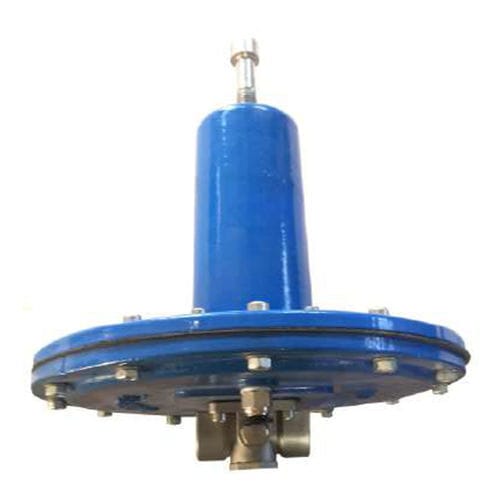

Diaphragm-actuated altitude pilot that maintains the maximum level in a reservoir or tank for water and neutral non-viscous fluids. Not suitable for steam.

Version

• Diaphragm-actuated 2-way altitude pilot
• Female screw threaded connection according to ISO 228
• Replaceable internal parts
• G 1/4" manometer fitting
• High setting accuracy and good response due to low friction and a small number of moving parts

Characteristics / technical specifications

• Working (inlet) pressure: max 16 bar
• Regulation range: 1 to 10 m; 3 to 30 m
• Sensitivity: 10 cm
• Maximum working temperature: 60°C
• Assembly position: any, preferably vertical
