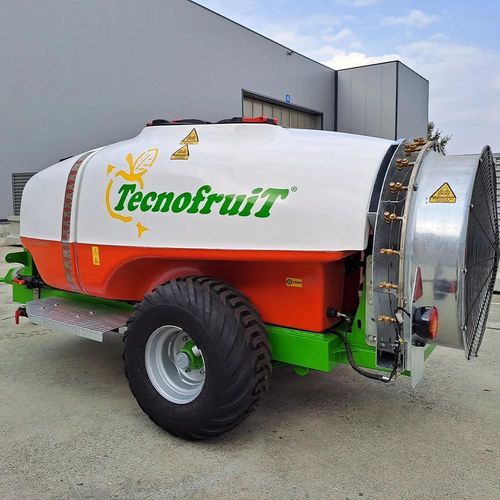

Towed agricultural atomizer AT3000

hydraulic

Description
Agricultural sprayer AT 3000. Available with Arag mod. Bravo 180s distribution computer or with an ISOBUS kit for tractor communication. Fitted with a steerable drawbar with hydraulic locking for transport and maneuvering.

Information

• Capacity: 3300 L, including system wash tank and hand-wash tank
• Tank material: fiberglass
• Pump: 170 L
• Nozzles: double anti-drip brass nozzles
• Solenoid valves: right and left
• Mixer: for powders and water-soluble products in the rear hatch
• Container washer placed in the basket
• Fan group with 2-speed clutch, adjustable blades (1 m diameter)
• Air recovery system and counter-rotating propeller on suction
• Lowered axle with leaf-spring suspension
• Air transfer system to optimise product distribution
• Low consumption and reduced product waste
• Road homologation for transport on public roads
• Wheels: 31,15.50-15

Characteristics / Technical specifications

• Tank capacity: 3300 L (including system wash tank and hand-wash tank)
• Tank: fiberglass
• Pump: 170 L
• Nozzles: double anti-drip brass nozzles
• Solenoid valves: right and left
• Mixer: for powders and water-soluble products in the rear hatch
• Container washer installed in the basket
• Fan unit: 2-speed clutch, adjustable blades (1 m diameter)
• System: air recovery and counter-propeller on suction
• Axle: lowered with leaf-spring suspension
• Air transfer to optimise product distribution
• Minimized consumption and reduced waste
• Approval: road homologated
• Wheels: 31,15.50-15
