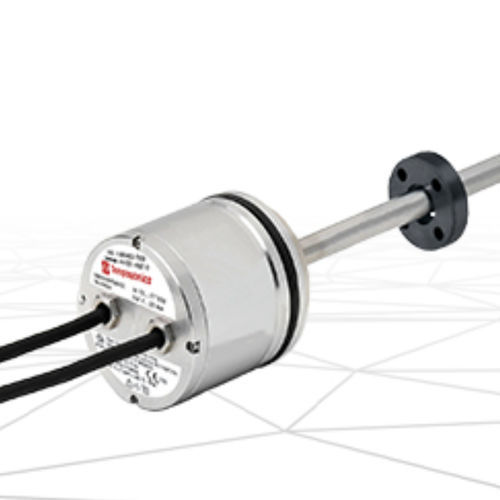

Linear position sensor GTE

The Temposonics® G-Series GTE is a redundant position sensor designed for high pressure applications and enhanced safety in harsh environments. It is embedded for extra protection and offers an IECEx certified version for use in hazardous areas. The sensor provides analog output and is suitable for applications requiring high reliability and safety.

Main Features

• Redundant position sensor with Ex certification for enhanced safety applications
• Designed for high pressure applications
• Embedded for extra protection in harsh environments
• IECEx certified version available
• Output: Analog

Specifications

• Output: Analog
• Stroke Length: 50…2540 mm (2…100 in.)
• Resolution: Infinite
• Status: Active Mature (Product is still in production, but a newer alternative is available)

Certifications & Approvals

• CE & ATEX
• NEC/CEC
• IECEx
• EAC
• CCC
• UKCA

Documents & Downloads

• Data Sheet (Analog, Part No. 551386, Revision E, Language: EN)
• Operation Manual (Analog, Part No. 551482, Revision D, Language: EN)
• 3D Model available online

Characteristics / Technical Specifications

• Redundant position sensor
• Ex certification for hazardous environments
• Analog output
• Stroke length: 50 to 2540 mm (2 to 100 in.)
• Infinite resolution
• Active Mature product status
• IECEx, CE, ATEX, NEC/CEC, EAC, CCC, UKCA certifications
