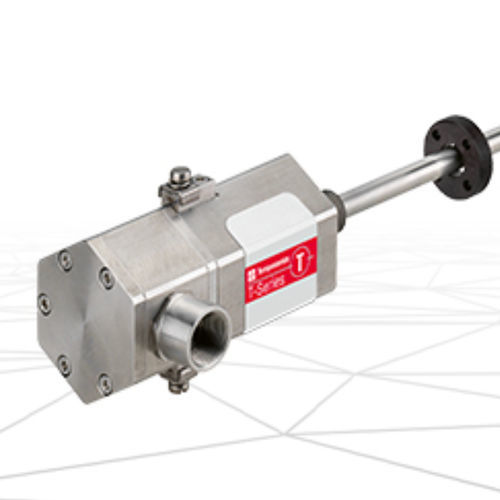

Linear position sensor TH

non-contact

The Temposonics® T-Series TH is an extremely robust position sensor designed and certified for Ex-applications, offering high durability and reliability in hazardous environments.

• Available in stainless steel 1.4404 (AISI 316L)
• Ingress protection ratings: IP66, IP67, IP68, IP69K, NEMA 4X
• Approval options include: ATEX, IECEx, CEC, NEC, Japanese approval, ClassNK, KCs, CCC, PESO
• Flame- and explosionproof construction
• Multi-position measurement capability with up to 4 magnets
• Output options: Analog, CANbus, SSI

Specifications

• Output: Analog, SSI, CANbus
• Stroke Length: 25…7620 mm (1…300 in.) for all outputs
• Resolution: Analog: 16 bit; SSI: 0.5 µm; CANbus: 2 µm
• Status: Active (Product is actively promoted and supported)

Certifications & Approvals

• CE
• ATEX
• NEC/CEC
• IECEx
• EAC
• KCs
• Japanese Approval
• ClassNK
• CCC
• UKCA
• PESO

Characteristics / Technical Specifications

• Material: Stainless steel 1.4404 (AISI 316L)
• Ingress Protection: IP66, IP67, IP68, IP69K, NEMA 4X
• Explosionproof and flameproof
• Multi-position measurement (up to 4 magnets)
• Output types: Analog, CANbus, SSI
• Stroke length: 25 to 7620 mm (1 to 300 in.)
• Resolution: Analog 16 bit, SSI 0.5 µm, CANbus 2 µm
• Certifications: ATEX, IECEx, CEC, NEC, Japanese approval, ClassNK, KCs, CCC, PESO, CE, EAC, UKCA
