Linear position sensor RH

non-contact

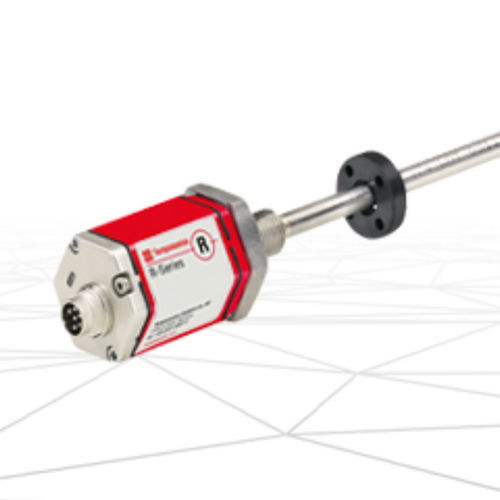

The Temposonics® R-Series RH are superior performance rod position sensors designed for demanding applications. These sensors are ideal for in-cylinder applications, allowing the sensing element and electronics to be easily replaced without interrupting the hydraulic circuit. They support multi-position measurement with up to 20 magnets and feature LEDs for sensor status and diagnostics. Output options include CANbus, Profibus, and DeviceNet.

Main Features

• In in-cylinder applications, the sensing element and electronics can be easily replaced without interrupting the hydraulic circuit
• Multi-position measurement with up to 20 magnets
• LEDs for sensor status and diagnostics
• Outputs: CANbus, Profibus, DeviceNet

Specifications

• Profibus Output: Stroke Length 25…7620 mm (1…300 in.), Resolution 1 µm, Multi-Position: Up to 20 Positions, Status: Active
• CANbus Output: Stroke Length 25…7620 mm (1…300 in.), Resolution 2 µm, Multi-Position: Up to 20 Positions, Status: Active
• DeviceNet Output: Stroke Length 25…7620 mm (1…300 in.), Resolution 2 µm, Multi-Position: -, Status: Active
• Analog, PROFINET, EtherCAT®, POWERLINK, EtherNet/IP™, SSI: Discontinued (newer alternatives available)

Certifications

• CE
• UL/CUL
• EAC

Documentation

• Data sheets and operation manuals available for Profibus, CANbus, DeviceNet, and Analog outputs

Characteristics / Technical Specifications

• Product type: Rod position sensor
• Application: Demanding industrial environments, in-cylinder use
• Replaceable sensing element and electronics
• Multi-position measurement: Up to 20 magnets
• LED diagnostics
• Output options: CANbus, Profibus, DeviceNet
• Stroke length: 25…7620 mm (1…300 in.)
• Resolution: 1 µm (Profibus), 2 µm (CANbus, DeviceNet)
• Status: Active (for main outputs), Discontinued (for some legacy outputs)
