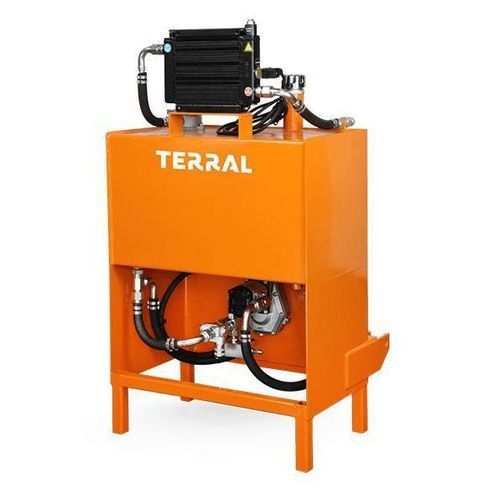

Oil-cooled hydraulic power unit

compactPTO-driventhree point linkage

The TERRAL Hydraulic Power Pack is a compact French-made hydraulic unit designed to provide supplementary hydraulic flow to agricultural implements or to allow a machine to be shared between multiple tractors without mixing oils.

Product overview

• Function: Complementary unit supplying additional hydraulic flow when a tractor's system cannot provide the required flow; prevents oil cross-contamination when a machine is used with several tractors.
• Use: Suitable for year-round use with compatible vineyard and general agricultural tools; compact footprint enables multiple mounting arrangements.
• Operation: Operates like a hydraulic pump coupled to an oil reservoir.
• Mounting: Rear-mounted on the tractor or on another machine equipped with a PTO/drive connection; commonly coupled to front-mounted implements (pre-pruner, pruner, leaf stripper, trimming machine, etc.).
• Rotation speed: 540 rpm.

Options

• Electric oil cooler with temperature probe.

Technical specifications

• Tank: 100 L (oil capacity 80 L)
• Three-point hitch: CAT1 or CAT2
• Flow control valve
• Pressure relief valve
• Level and temperature indicators
• Push-pull hydraulic couplings
• Drainage valve
• Drive shaft with certified guard
• Available pump models:
  • 45L GR2
  • 45L GR3
  • 65L GR3
