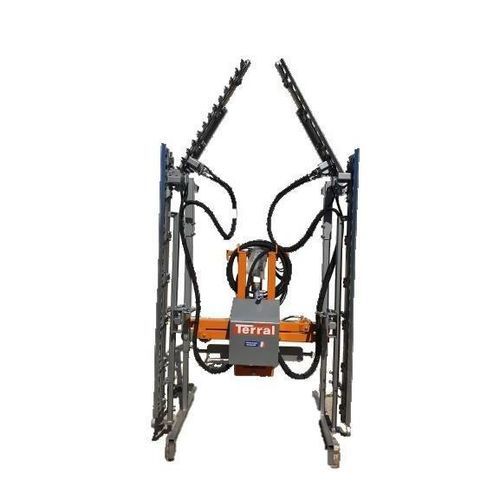

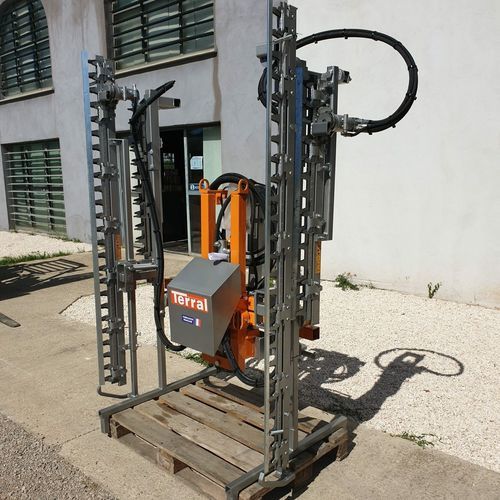

Vineyard topping machine Kiwisickle barwith panoramic viewhydraulic
Add to favorites
Compare this product
Characteristics
- Application
- vineyard
- Other characteristics
- hydraulic, sickle bar, with panoramic view
Description
Product overview:
Applications and use:
Hitching and mounting:
Versions and options:
Standard equipment:
Safety and maintenance:
Technical specifications (key items):
Regional names (memo):
- Function: Front-mounted trimmer designed to maintain actinidia (kiwi) plantations by cutting side and underside branches to keep the area beneath the vines clear and reduce disease risk.
- Model: Terral Kiwi, Vision chassis offering full frontal visibility from the tractor.
- Operation principle: Adjustable cutting sections and panel clearance angle produce clean cuts; multiple angle and spacing settings adapt to different plant profiles.
Applications and use:
- Intended for use during the actinidia vegetative cycle (typically July–August).
- Optimised for green, growing shoots; branch length does not limit performance.
- Recommended forward speed: 4.0–8.0 km/h depending on vine stiffness and inter-row flatness.
Hitching and mounting:
- Can be mounted front of tractor (enabling a rear implement to be used simultaneously), on rear 3-point hitch (CAT1 or CAT2) or on a 2- or 4-wheel bogie/cart.
- Vision chassis ensures operator visibility for precise alignment and trimming.
Versions and options:
- Chassis variants: Classic (Narrow, Standard, Wide) and Reversing (Narrow, Standard, Wide).
- Side cutter bar lengths: 1.60 m or 1.90 m; top cutter bar length: 1.05 m.
- Hydraulic options: simultaneous or independent lateral gauge adjustment; independent hydraulic height adjustment of top panels.
Standard equipment:
- Vision compact double-girder profiled steel chassis.
- Hydraulic machine height adjustment and mechanical side-gap adjustment (ratchet wheel).
- Heavy-duty hydraulic motors and cam with bearing guide.
- Manual distributor (for tractors without cab) or electrohydraulic joystick control; electric cooler with thermal probe.
Safety and maintenance:
- Protective grating and spring-loaded safety return device on side cutter bars.
- Manual folding and adjustment of upper cutter bars for road transport or storage.
- Storage struts and mounting bracket for front installation.
Technical specifications (key items):
- Cutting geometry: 6° cutting angle towards the vegetation for a clean cut.
- Mounting: front mount standard; rear 3-point or bogie options available.
- Recommended feed rate: 4.0–8.0 km/h.
- Side bars: 1.60 m / 1.90 m; top bar: 1.05 m.
Regional names (memo):
- Southeastern France: “écimeuse” / pruning machine.
- Southwest and northeast France: “rogneuse” / leaf cutter.
- Charentes or Loire regions: “faucilleuse” / scythe machine.
- Other regional terms: “écourteuse”, “estrapeuse”.
